101990051
SENSOR OPTICAL 30-1200CMManufacturer: Seeed Technology Co., Ltd
Categories: Distance Measuring
Quality Control: Learn More

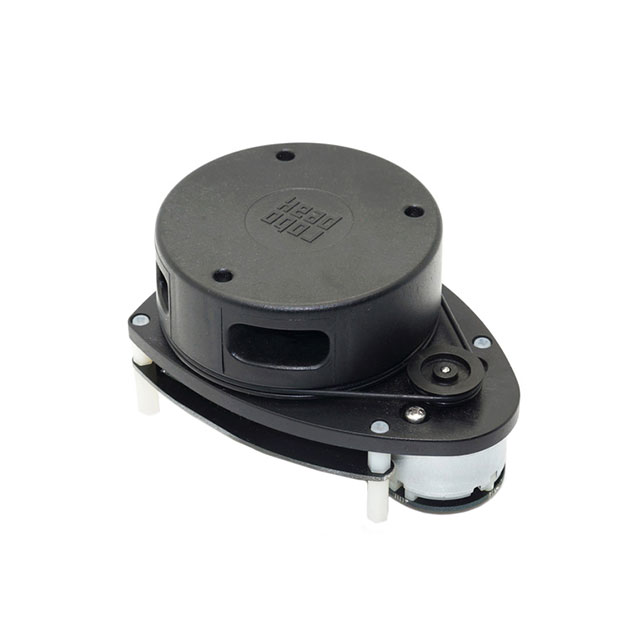

The Seeed Technology Co., Ltd RPLIDAR optical sensor, part number 101990051, offers a sensing distance range from 20cm to 600cm (7.87" to 236.22"). This component operates with a 5V supply voltage and draws a typical current of 200 mA. Its operating temperature range is 0°C to 45°C. The RPLIDAR series is widely utilized in robotics, autonomous navigation, and environmental monitoring applications where precise distance measurement is critical. The component is supplied in bulk packaging.
Additional Information
Series: RPLIDARRoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Output Type | - |
| Sensing Distance | 7.87"" ~ 236.22"" (20 ~ 600cm) |
| Operating Temperature | 0°C ~ 45°C |
| Voltage - Supply | 5V |
| Voltage - Output Difference (Typ) @ Distance | - |
| Voltage - Output (Typ) @ Distance | - |
| Current - Supply | 200 mA |
