101990866
DEPTHEYE S2 -H67 X V51 VGA TOF CManufacturer: Seeed Technology Co., Ltd
Categories: Camera Modules
Quality Control: Learn More

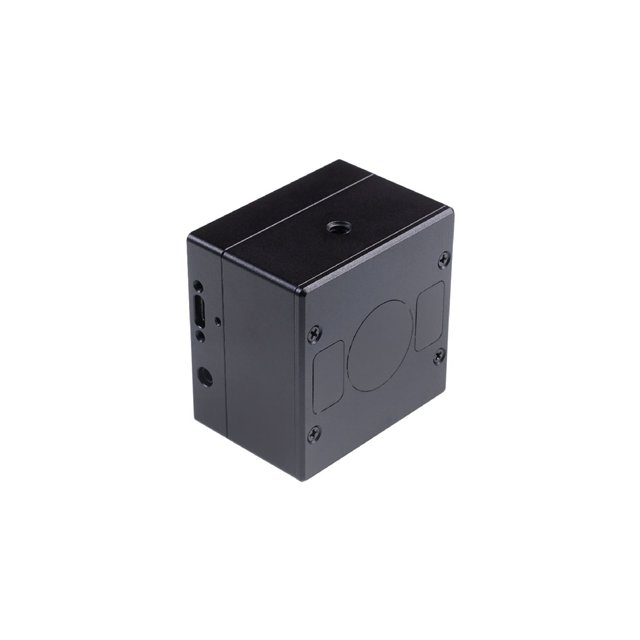

Seeed Technology Co., Ltd DEPTHEYE S2 -H67 X V51 VGA TOF Camera Module, part number 101990866. This CMOS module features a 640 x 480 VGA resolution with a 10µm x 10µm pixel size. The interface is USB 3.1, supporting up to 30 frames per second. The module dimensions are 2.283" L x 2.283" W (58.00mm x 58.00mm) with a maximum height of 0.068" (1.73mm). It utilizes the IMX556 sensor and is suitable for chassis mounting. This component finds application in industrial automation, robotics, and embedded vision systems.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: 26 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Module |
| Color | - |
| Size / Dimension | 2.283"" L x 2.283"" W (58.00mm x 58.00mm) |
| Mounting Type | Chassis Mount |
| Interface | USB 3.1 |
| Type | CMOS |
| Pixel Size | 10µm x 10µm |
| Resolution | 640 x 480 |
| Height (Max) | 0.068"" (1.73mm) |
| Supplier Device Package | - |
| Frames per Second | 30.0 |
| Shutter | - |
| Sensor | IMX556 |
| Lens Mount | - |
