PCAP04-ASDF
IC CAP TO DGTL CONVRTR 17BIT DIEManufacturer: ScioSense
Categories: ADCs/DACs - Special Purpose
Quality Control: Learn More
ScioSense PICOCAP® PCAP04-ASDF is a 17-bit Capacitance-to-Digital Converter (CDC) designed for high-precision sensing applications. This die-form component facilitates direct integration into advanced designs, offering a compact footprint. The PCAP04-ASDF supports both I2C and SPI data interfaces, providing flexibility for various system architectures. It operates from a single supply voltage ranging from 2.1V to 3.6V and functions across an industrial temperature range of -40°C to 125°C. With six channels of capacitance conversion, this device is well-suited for applications in consumer electronics, industrial automation, and medical devices where accurate capacitance measurement is critical. The component is supplied in Tape & Reel packaging.
Additional Information
Series: PICOCAP®RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: DiscontinuedPackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | Die |
| Mounting Type | Surface Mount |
| Type | Capacitance-to-Digital Converter |
| Data Interface | I2C, SPI |
| Operating Temperature | -40°C ~ 125°C |
| Voltage - Supply | 2.1V ~ 3.6V |
| Sampling Rate (Per Second) | - |
| Resolution (Bits) | 17 b |
| Voltage Supply Source | Single Supply |
| Supplier Device Package | Die |
| Grade | - |
| Number of Channels | 6 |
| Qualification | - |
Request a Quote
Clients Also Buy

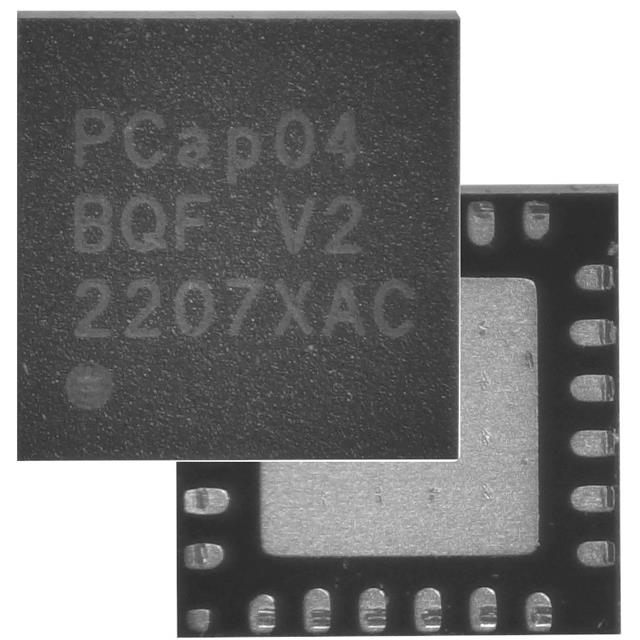

PCAP04-BQFM-24
