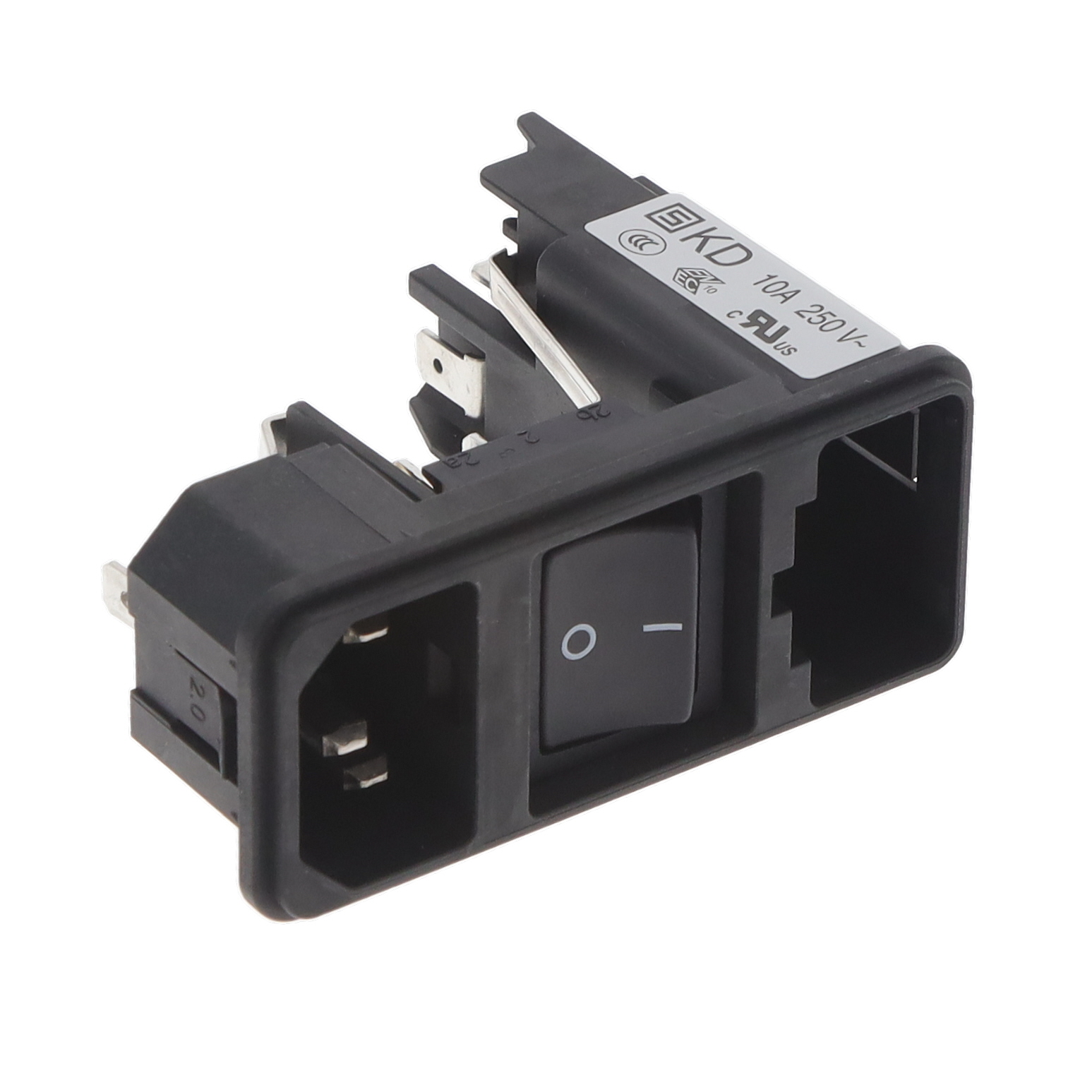

KD14.4101.107
PWR ENT MOD RCPT IEC320-C14 PNLManufacturer: SCHURTER Inc.
Categories: Power Entry Modules (PEM)
Quality Control: Learn More
Power Entry Connector Receptacle, Male Blades - Module IEC 320-C14 Panel Mount, Snap-In
Additional Information
Series: KDRoHS Status: ROHS3 CompliantManufacturer Lead Time: 7 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Voltage Selector |
| Packaging | Bulk |
| Filter Type | Unfiltered - Commercial |
| Connector Type | Receptacle, Male Blades - Module |
| Mounting Type | Panel Mount, Snap-In |
| Number of Positions | 3 |
| Termination | Quick Connect - 0.189"" (4.8mm) |
| Approval Agency | CCC, CSA, ENEC, UL |
| Ingress Protection | IP40 |
| Panel Thickness | 0.079"" (2.00mm) |
| Panel Cutout Dimensions | Rectangular - 27.50mm x 66.50mm |
| Connector Style | IEC 320-C14 |
| Material Flammability Rating | UL94 V-0 |
| Accomodates a Fuse | Yes (Fuse Not Included) |
| Switch Features | Switch On-Off |
| Fuse Holder, Drawer | Drawer Sold Separate |
| Current Rating - Appliance Inlet | 10A |
| Voltage Rating - Appliance Inlet | 250VAC |
| Current Rating - Filter | - |
| Current Rating - Circuit Breaker | - |
Request a Quote
Clients Also Buy

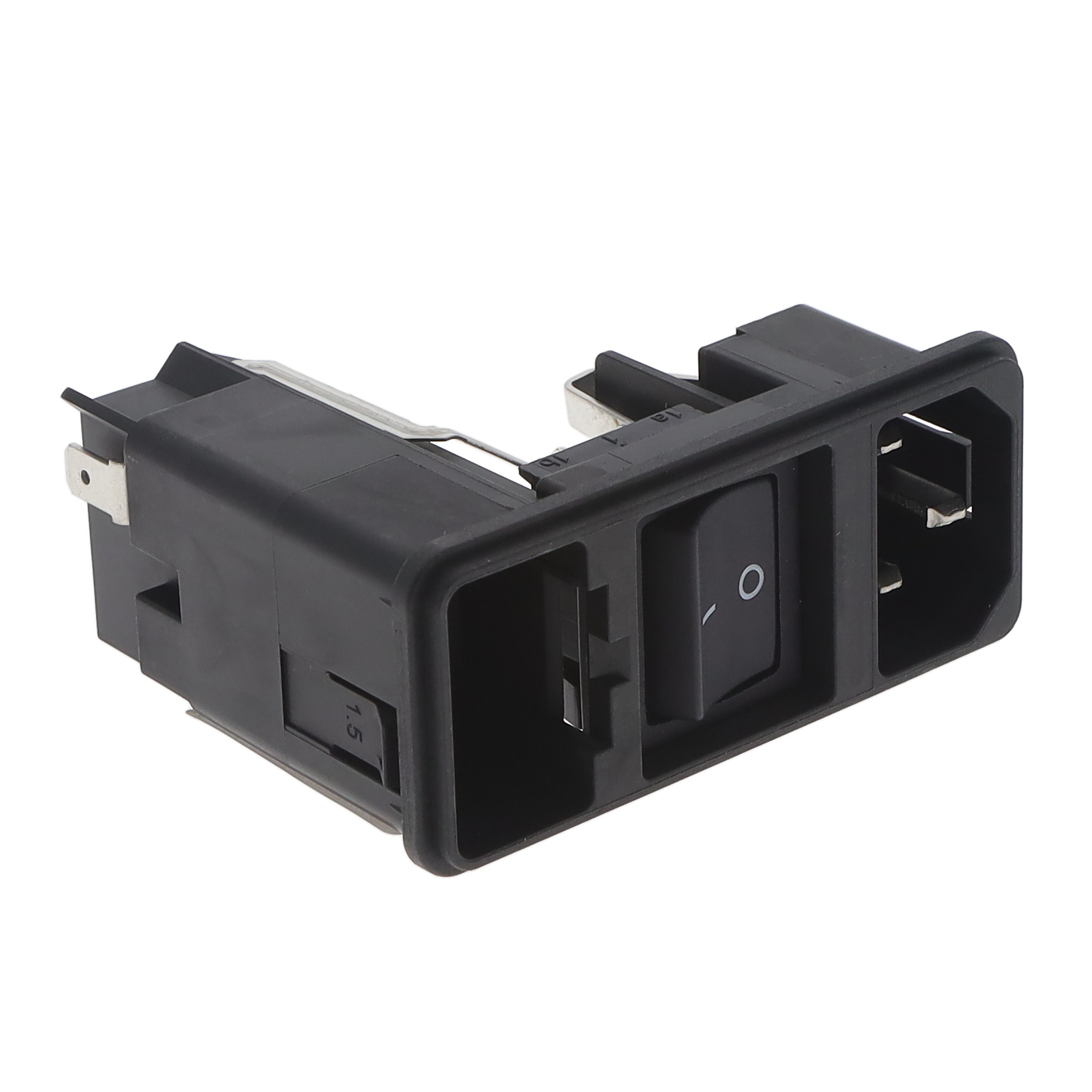

KD13.1101.105
PWR ENT MOD RCPT IEC320-C14 PNL

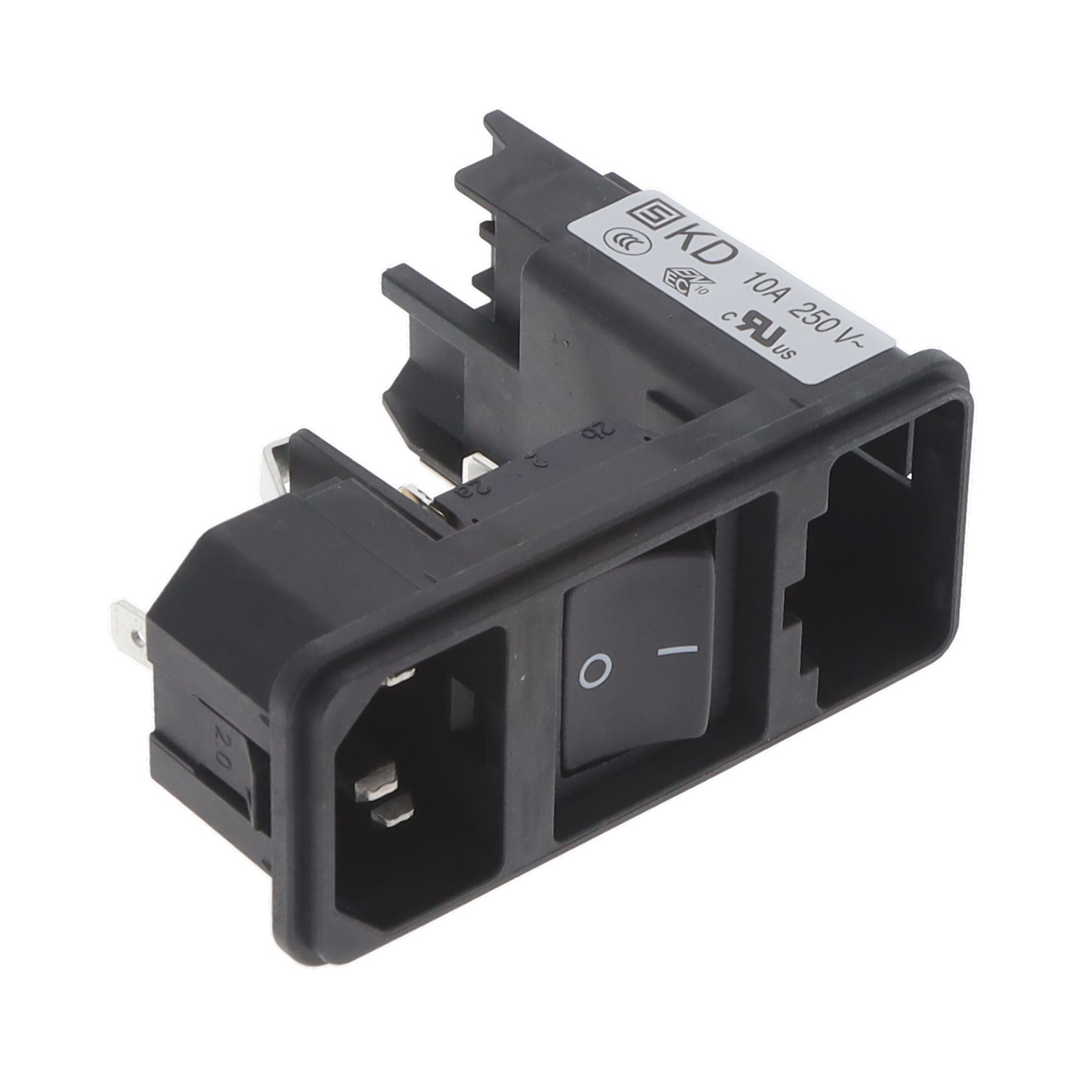

KD13.1101.107
PWR ENT MOD RCPT IEC320-C14 PNL

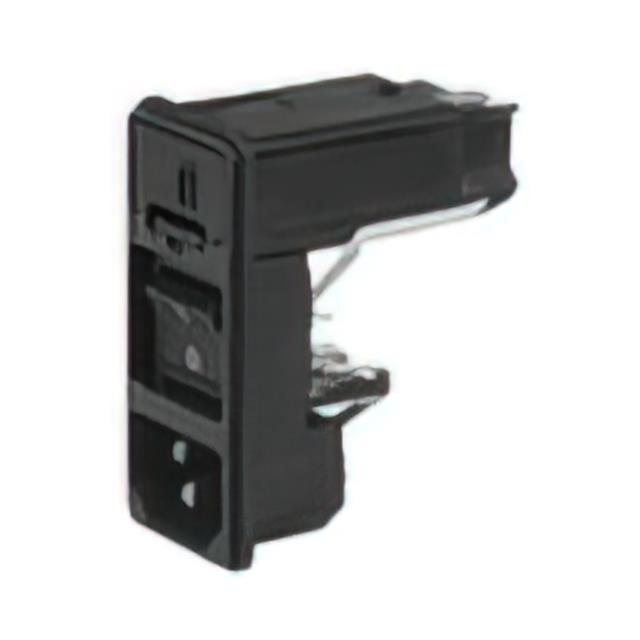

KD13.1101.109
