KD11.4199.151
PWR ENT MOD RCPT IEC320-C14 PNLManufacturer: SCHURTER Inc.
Categories: Power Entry Modules (PEM)
Quality Control: Learn More
The SCHURTER Inc. KD Bowdencable series KD11-4199-151 is a panel-mount power entry module featuring an IEC 320-C14 receptacle. This unfiltered, commercial-grade connector is designed for 250VAC and a 10A current rating. It includes an integrated ON-OFF switch and a voltage selector, accommodating a fuse (sold separately) within its drawer-style holder. Termination is achieved via 4.8mm quick connect terminals. Constructed with UL94 V-0 rated materials, it offers IP40 ingress protection. Panel mounting is facilitated by a flange with a rectangular cutout of 27.50mm x 66.50mm. Approvals include CCC, CSA, ENEC, and UL. This component is commonly utilized in the IT, industrial automation, and medical equipment sectors.
Additional Information
Series: KD BowdencableRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Voltage Selector |
| Packaging | Bulk |
| Filter Type | Unfiltered - Commercial |
| Connector Type | Receptacle, Male Blades - Module |
| Mounting Type | Panel Mount, Flange |
| Number of Positions | 3 |
| Termination | Quick Connect - 0.189"" (4.8mm) |
| Approval Agency | CCC, CSA, ENEC, UL |
| Ingress Protection | IP40 |
| Panel Thickness | - |
| Panel Cutout Dimensions | Rectangular - 27.50mm x 66.50mm |
| Connector Style | IEC 320-C14 |
| Material Flammability Rating | UL94 V-0 |
| Accomodates a Fuse | Yes (Fuse Not Included) |
| Switch Features | Switch On-Off |
| Fuse Holder, Drawer | Drawer Sold Separate |
| Current Rating - Appliance Inlet | 10A |
| Voltage Rating - Appliance Inlet | 250VAC |
| Current Rating - Filter | - |
| Current Rating - Circuit Breaker | - |
Request a Quote
Clients Also Buy
KD14.4199.107
PWR ENT MOD RCPT IEC320-C14 PNL

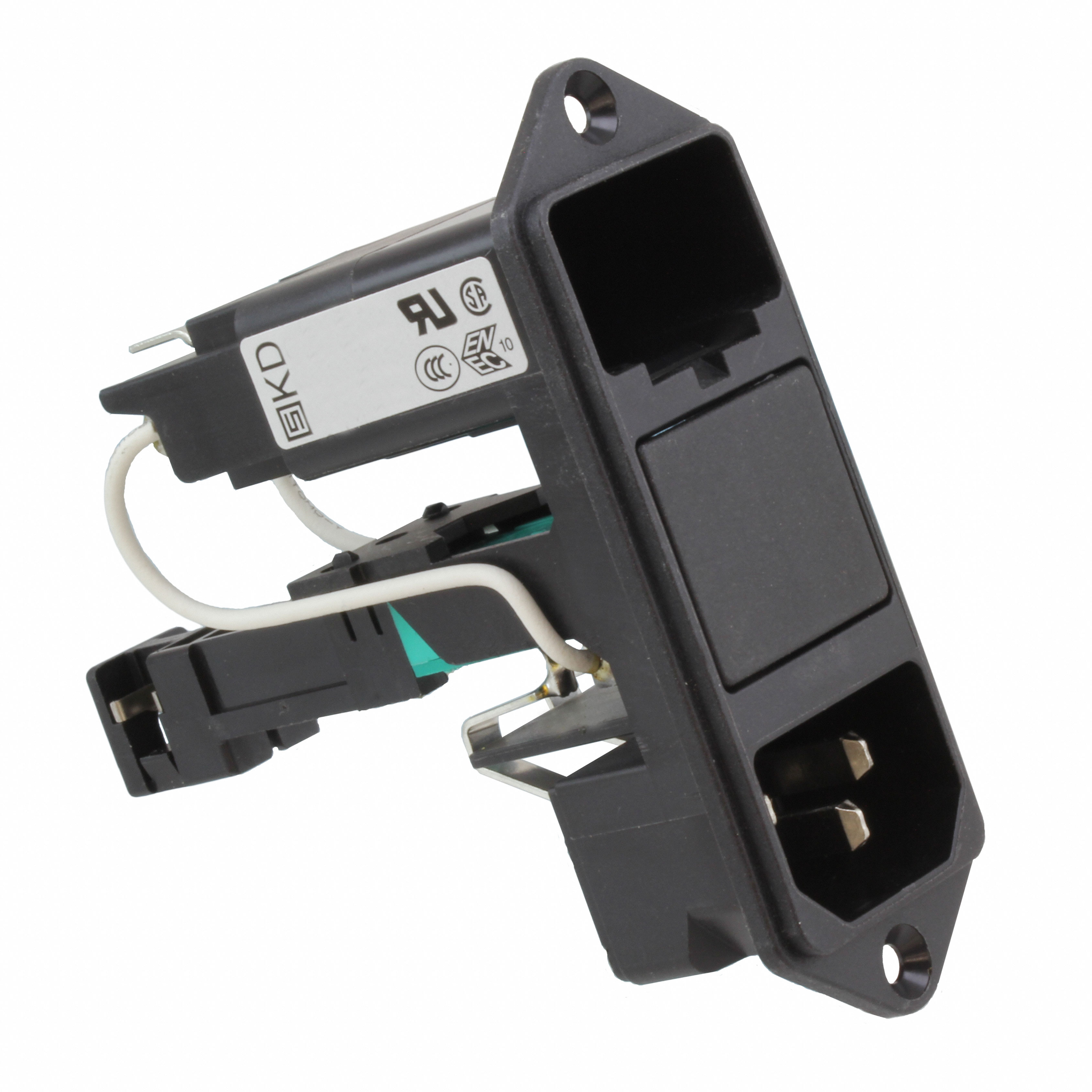

KD14.4199.151
PWR ENT MOD RCPT IEC320-C14 PNL

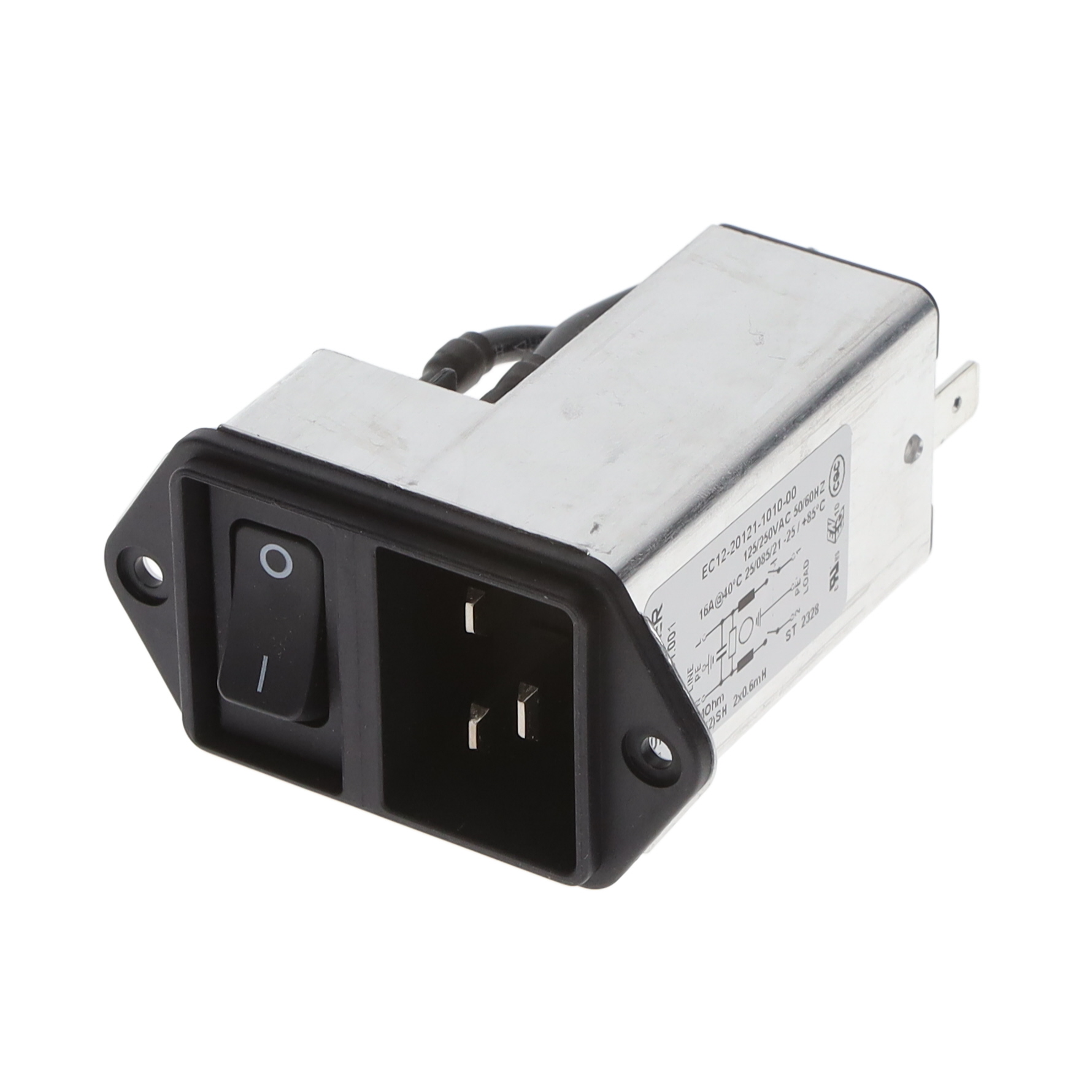

EC12.2201.001
