GSP2.9103.1321
PWR ENT RCPT IEC320-C14 PANEL QCManufacturer: SCHURTER Inc.
Categories: Power Entry Modules (PEM)
Quality Control: Learn More
SCHURTER Inc. GSP2 series power entry module, part number GSP2-9103-1321, is an unfiltered IEC 320-C14 receptacle designed for panel mounting. This component features male blades and a right-angle, through-hole termination style suitable for 0.189" (4.8mm) quick connect or solder connections. Rated for 250VAC and 10A, it is constructed with UL94 V-0 rated materials for flammability resistance and offers IP40 ingress protection. The panel mount design includes a flange with a rectangular cutout of 30.30mm x 22.50mm for panels up to 0.059" (1.50mm) thick. This component is commonly utilized in industrial automation, medical equipment, and IT infrastructure applications. It holds CCC, cURus, and ENEC approvals.
Additional Information
Series: GSP2RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Filter Type | Unfiltered - Commercial |
| Connector Type | Receptacle, Male Blades |
| Mounting Type | Panel Mount, Flange; Through Hole, Right Angle |
| Number of Positions | 3 |
| Termination | Solder, Quick Connect - 0.189"" (4.8mm) |
| Approval Agency | CCC, cURus, ENEC |
| Ingress Protection | IP40 |
| Panel Thickness | 0.059"" (1.50mm) |
| Panel Cutout Dimensions | Rectangular - 30.30mm x 22.50mm |
| Connector Style | IEC 320-C14 |
| Material Flammability Rating | UL94 V-0 |
| Accomodates a Fuse | No |
| Switch Features | - |
| Fuse Holder, Drawer | - |
| Current Rating - Appliance Inlet | 10A |
| Voltage Rating - Appliance Inlet | 250VAC |
| Current Rating - Filter | - |
| Current Rating - Circuit Breaker | - |
Request a Quote
Clients Also Buy
GSP2.000H.13
PWR ENT RCPT IEC320-C14 PANEL QC

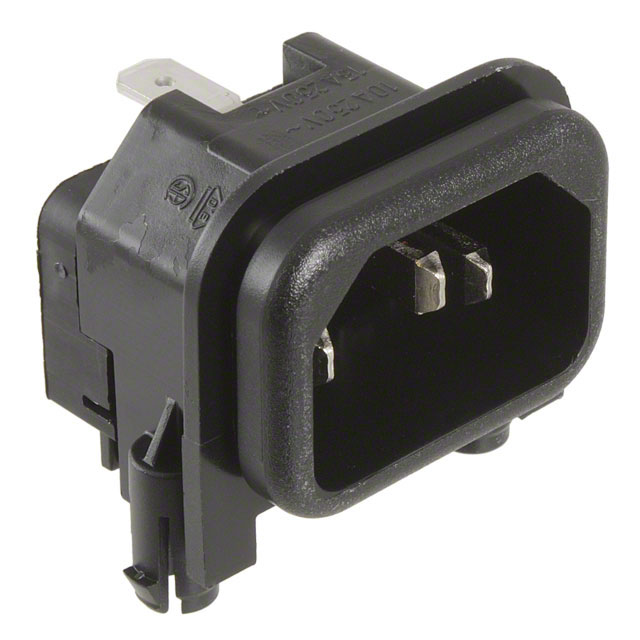

GSP2.7901.16
