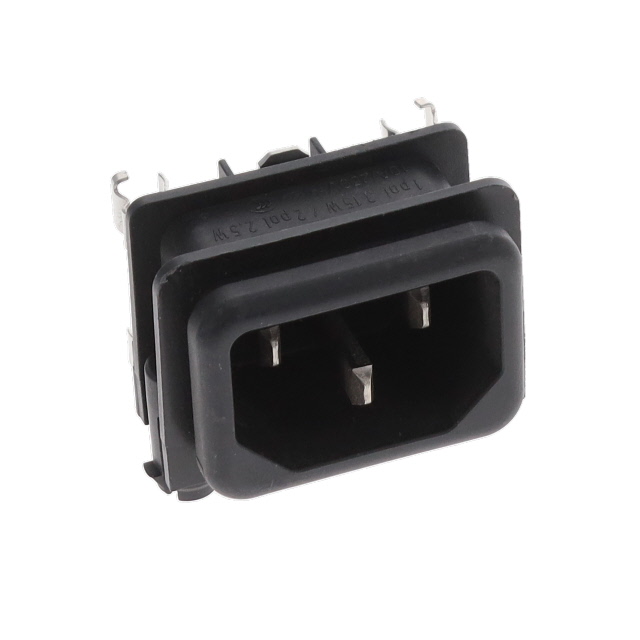

GSF1.2212.41
PWR ENT MOD RCPT IEC320-C14Manufacturer: SCHURTER Inc.
Categories: Power Entry Modules (PEM)
Quality Control: Learn More
SCHURTER Inc.'s GSF1 series power entry module, part number GSF1-2212-41, is an IEC 320-C14 receptacle designed for robust power input solutions. This unfiltered module features male blades and a 3-position configuration, rated for 10A and 250VAC. It incorporates a fuse holder for enhanced circuit protection, accommodating a fuse (not included). With an IP40 ingress protection rating and a UL94 V-0 material flammability rating, it is suitable for demanding applications where safety and reliability are paramount. Approvals from CCC, CSA, ENEC, and UL underscore its compliance with international standards. This component is commonly employed in industrial automation, medical equipment, and telecommunications infrastructure.
Additional Information
Series: GSF1RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Filter Type | Unfiltered - Commercial |
| Connector Type | Receptacle, Male Blades - Module |
| Mounting Type | - |
| Number of Positions | 3 |
| Termination | - |
| Approval Agency | CCC, CSA, ENEC, UL |
| Ingress Protection | IP40 |
| Panel Thickness | - |
| Panel Cutout Dimensions | - |
| Connector Style | IEC 320-C14 |
| Material Flammability Rating | UL94 V-0 |
| Accomodates a Fuse | Yes (Fuse Not Included) |
| Switch Features | - |
| Fuse Holder, Drawer | - |
| Current Rating - Appliance Inlet | 10A |
| Voltage Rating - Appliance Inlet | 250VAC |
| Current Rating - Filter | - |
| Current Rating - Circuit Breaker | - |
