GSF1.2212.31
PWR ENT MOD RCPT IEC320-C14Manufacturer: SCHURTER Inc.
Categories: Power Entry Modules (PEM)
Quality Control: Learn More

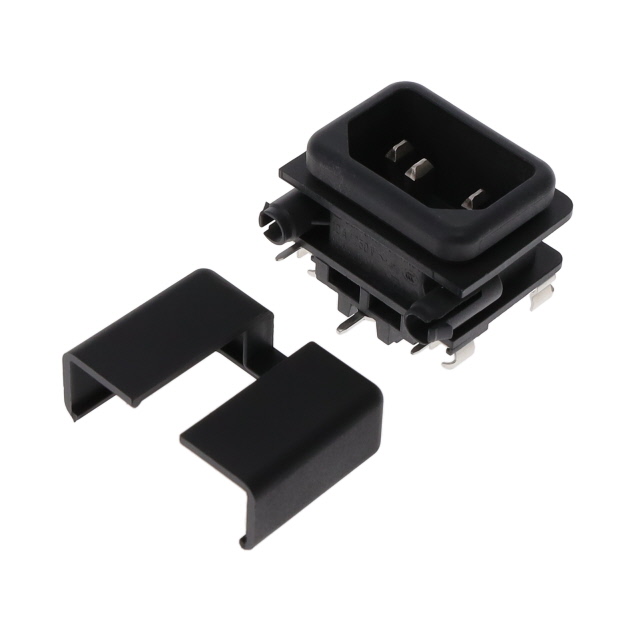

The SCHURTER Inc. GSF1 Series GSF1-2212-31 is a power entry module featuring an IEC 320-C14 receptacle with male blades. This unfiltered, commercial-grade connector is designed for 250VAC and a 10A appliance inlet rating. It incorporates a fuse holder for a single fuse (not included), providing overcurrent protection. The unit is constructed from UL94 V-0 rated material for enhanced fire safety and offers IP40 ingress protection. Approvals include CCC, CSA, ENEC, and UL. This component is suitable for applications in the IT, industrial, and medical sectors. It is supplied in bulk packaging.
Additional Information
Series: GSF1RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Filter Type | Unfiltered - Commercial |
| Connector Type | Receptacle, Male Blades - Module |
| Mounting Type | - |
| Number of Positions | 3 |
| Termination | - |
| Approval Agency | CCC, CSA, ENEC, UL |
| Ingress Protection | IP40 |
| Panel Thickness | - |
| Panel Cutout Dimensions | - |
| Connector Style | IEC 320-C14 |
| Material Flammability Rating | UL94 V-0 |
| Accomodates a Fuse | Yes (Fuse Not Included) |
| Switch Features | - |
| Fuse Holder, Drawer | - |
| Current Rating - Appliance Inlet | 10A |
| Voltage Rating - Appliance Inlet | 250VAC |
| Current Rating - Filter | - |
| Current Rating - Circuit Breaker | - |
