GSF1.2012.31
PWR ENT MOD RCPT IEC320-C14Manufacturer: SCHURTER Inc.
Categories: Power Entry Modules (PEM)
Quality Control: Learn More

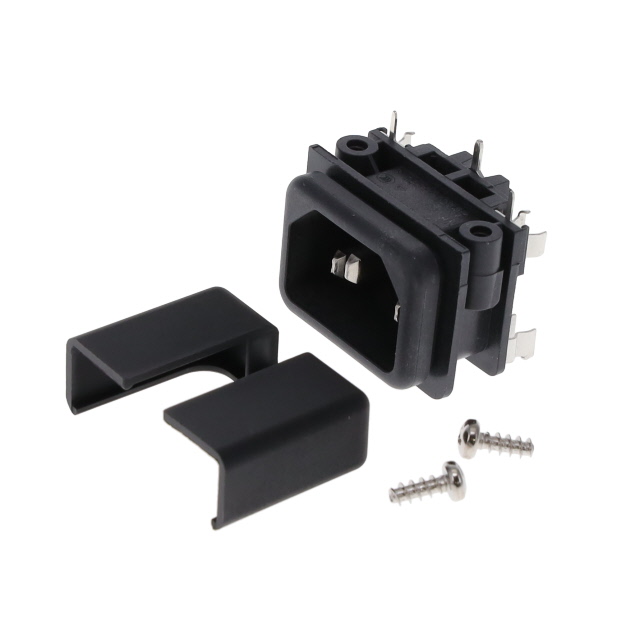

SCHURTER Inc. GSF1 Series power entry module, part number GSF1-2012-31, is an unfiltered IEC 320-C14 receptacle designed for robust power input. This component features male blades and a 3-position configuration, accommodating a fuse (not included) for enhanced circuit protection. Rated for 250VAC and a 10A appliance inlet current, it meets rigorous international standards, holding approvals from CCC, CSA, ENEC, and UL. The module's construction utilizes UL94 V-0 rated materials for superior fire safety and provides an IP40 ingress protection rating against solid objects. Its design is suitable for applications requiring reliable power entry in demanding environments across various industries, including industrial automation, medical equipment, and advanced computing systems.
Additional Information
Series: GSF1RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Filter Type | Unfiltered - Commercial |
| Connector Type | Receptacle, Male Blades - Module |
| Mounting Type | - |
| Number of Positions | 3 |
| Termination | - |
| Approval Agency | CCC, CSA, ENEC, UL |
| Ingress Protection | IP40 |
| Panel Thickness | - |
| Panel Cutout Dimensions | - |
| Connector Style | IEC 320-C14 |
| Material Flammability Rating | UL94 V-0 |
| Accomodates a Fuse | Yes (Fuse Not Included) |
| Switch Features | - |
| Fuse Holder, Drawer | - |
| Current Rating - Appliance Inlet | 10A |
| Voltage Rating - Appliance Inlet | 250VAC |
| Current Rating - Filter | - |
| Current Rating - Circuit Breaker | - |
