GRF4.0021.013
PWR ENT RCPT IEC320-C14 PANEL QCManufacturer: SCHURTER Inc.
Categories: Power Entry Modules (PEM)
Quality Control: Learn More

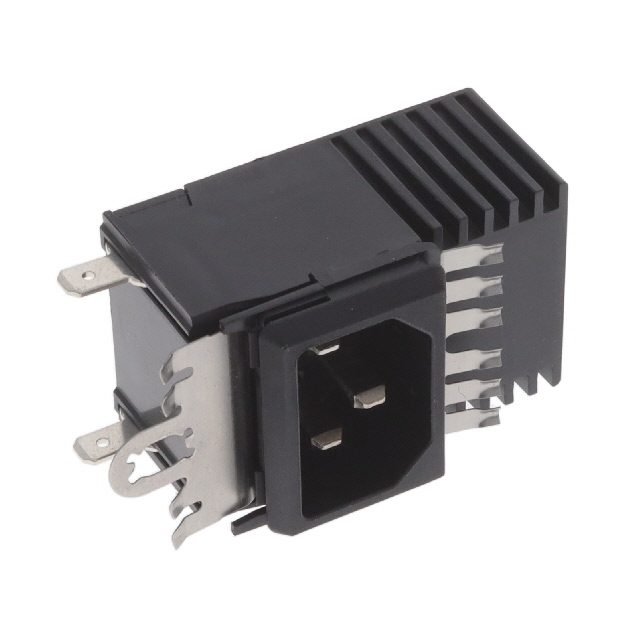

The SCHURTER Inc. GRF4 series GRF4-0021-013 is a power entry module featuring an IEC 320-C14 receptacle with male blades, designed for panel mount, snap-in installation. This filtered connector provides EMI/RFI suppression suitable for commercial and medical applications. It offers a 3-position configuration and a current rating of 0.5A at 250VAC. The unit is shielded and constructed with UL94 V-0 rated material, ensuring fire safety. Termination is achieved via quick connect terminals, 4.8mm. Panel cutout dimensions are rectangular, 30.50mm x 20.80mm, for panel thicknesses up to 1.50mm. Approvals include CSA, UL, and VDE. This component is supplied in bulk packaging.
Additional Information
Series: GRF4RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Shielded |
| Packaging | Bulk |
| Filter Type | Filtered (EMI, RFI) - Commercial, Medical |
| Connector Type | Receptacle, Male Blades |
| Mounting Type | Panel Mount, Snap-In |
| Number of Positions | 3 |
| Termination | Quick Connect - 0.189"" (4.8mm) |
| Approval Agency | CSA, UL, VDE |
| Ingress Protection | IP40 |
| Panel Thickness | 0.059"" (1.50mm) |
| Panel Cutout Dimensions | Rectangular - 30.50mm x 20.80mm |
| Connector Style | IEC 320-C14 |
| Material Flammability Rating | UL94 V-0 |
| Accomodates a Fuse | No |
| Switch Features | - |
| Fuse Holder, Drawer | - |
| Current Rating - Appliance Inlet | 0.5A |
| Voltage Rating - Appliance Inlet | 250VAC |
| Current Rating - Filter | 0.5A |
| Current Rating - Circuit Breaker | - |
