DD21.0123.1111
PWR ENT MOD RCPT IEC320-C14 PNLManufacturer: SCHURTER Inc.
Categories: Power Entry Modules (PEM)
Quality Control: Learn More
Power Entry Connector Receptacle, Male Blades - Module IEC 320-C14 Panel Mount, Flange; Through Hole, Right Angle
Additional Information
Series: DD21RoHS Status: ROHS3 CompliantManufacturer Lead Time: 14 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Terminating Cover |
| Packaging | Bulk |
| Filter Type | Unfiltered - Commercial |
| Connector Type | Receptacle, Male Blades - Module |
| Mounting Type | Panel Mount, Flange; Through Hole, Right Angle |
| Number of Positions | 3 |
| Termination | Solder, Quick Connect - 0.189"" (4.8mm) |
| Approval Agency | cULus, ENEC |
| Ingress Protection | IP40 |
| Panel Thickness | 0.118"" (3.00mm) |
| Panel Cutout Dimensions | Rectangular - 47.10mm x 28.10mm |
| Connector Style | IEC 320-C14 |
| Material Flammability Rating | UL94 V-0 |
| Accomodates a Fuse | Yes (Fuse Not Included) |
| Switch Features | Switch On-Off, Illuminated |
| Fuse Holder, Drawer | Drawer Sold Separate |
| Current Rating - Appliance Inlet | 10A |
| Voltage Rating - Appliance Inlet | 250VAC |
| Current Rating - Filter | - |
| Current Rating - Circuit Breaker | - |
Request a Quote
Clients Also Buy

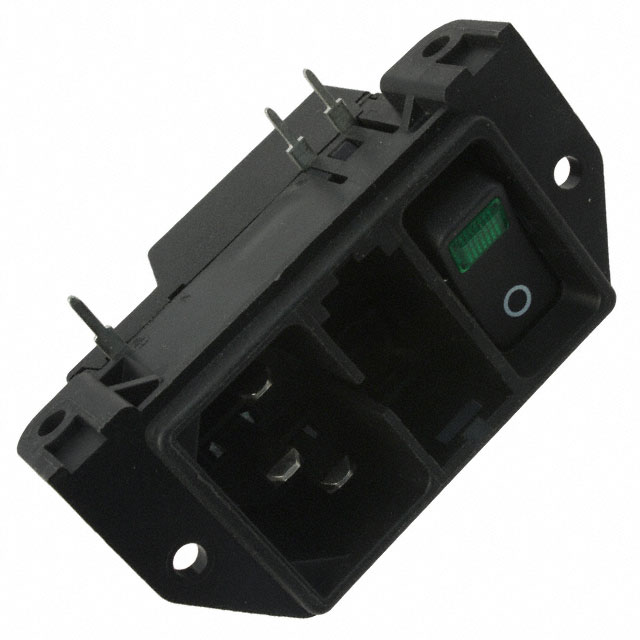

DD21.0114.1111
