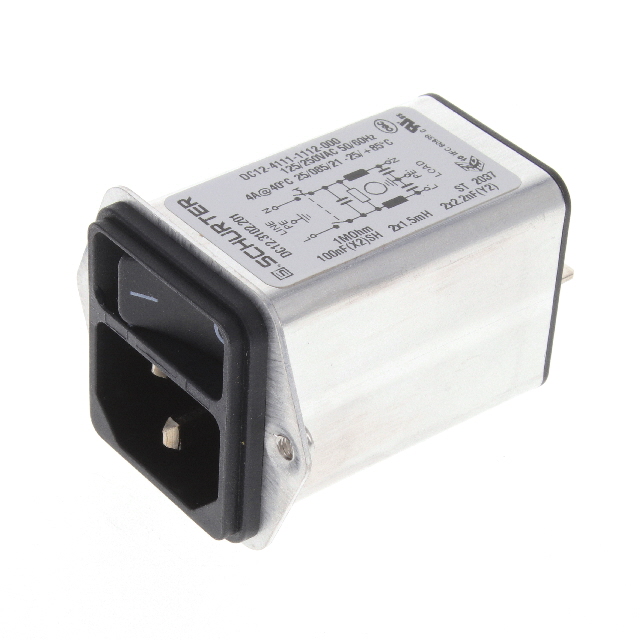

DC12.3102.201
PWR ENT MOD RCPT IEC320-C14 PNLManufacturer: SCHURTER Inc.
Categories: Power Entry Modules (PEM)
Quality Control: Learn More
Power Entry Connector Receptacle, Male Blades - Module IEC 320-C14 Panel Mount, Flange
Additional Information
Series: DC12RoHS Status: ROHS3 CompliantManufacturer Lead Time: 9 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Shielded, V-Lock Notch |
| Packaging | Bulk |
| Filter Type | Filtered (EMI, RFI) - Commercial |
| Connector Type | Receptacle, Male Blades - Module |
| Mounting Type | Panel Mount, Flange |
| Number of Positions | 3 |
| Termination | Quick Connect - 0.250"" (6.3mm) |
| Approval Agency | CQC, cULus, ENEC |
| Ingress Protection | IP40 |
| Panel Thickness | - |
| Panel Cutout Dimensions | Rectangular - 30.40mm x 34.40mm |
| Connector Style | IEC 320-C14 |
| Material Flammability Rating | UL94 V-0 |
| Accomodates a Fuse | No |
| Switch Features | Switch On-Off |
| Fuse Holder, Drawer | - |
| Current Rating - Appliance Inlet | 10A |
| Voltage Rating - Appliance Inlet | 250VAC |
| Current Rating - Filter | 4A |
| Current Rating - Circuit Breaker | - |
