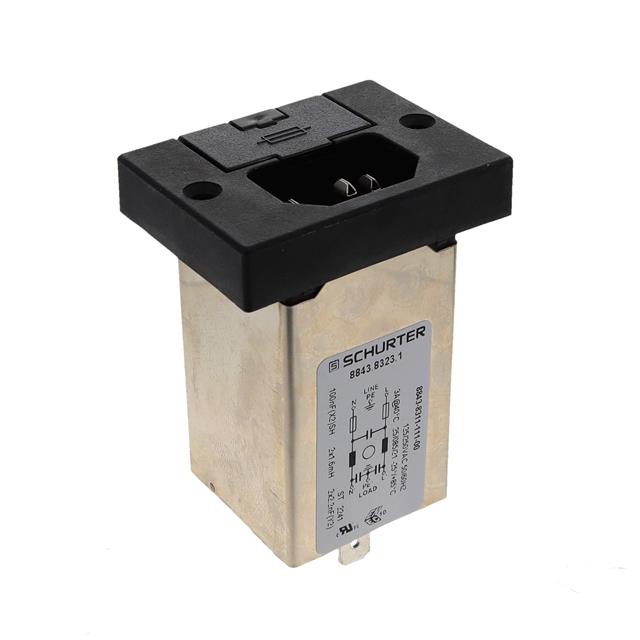

8843.8323.1
PWR ENT MOD RCPT IEC320-C14 PNLManufacturer: SCHURTER Inc.
Categories: Power Entry Modules (PEM)
Quality Control: Learn More
Power Entry Connector Receptacle, Male Blades - Module IEC 320-C14 Panel Mount, Flange
Additional Information
Series: 8843-8RoHS Status: ROHS3 CompliantManufacturer Lead Time: 9 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Shielded |
| Packaging | Bulk |
| Filter Type | Filtered (EMI, RFI) - Commercial |
| Connector Type | Receptacle, Male Blades - Module |
| Mounting Type | Panel Mount, Flange |
| Number of Positions | 3 |
| Termination | Quick Connect - 0.250"" (6.3mm) |
| Approval Agency | CSA, S+ MARK, SEMKO, UL, VDE |
| Ingress Protection | - |
| Panel Thickness | - |
| Panel Cutout Dimensions | Square - 33.30mm x 33.30mm |
| Connector Style | IEC 320-C14 |
| Material Flammability Rating | UL94 V-0 |
| Accomodates a Fuse | Yes (Fuse Not Included) |
| Switch Features | - |
| Fuse Holder, Drawer | Drawer Sold Separate, Twin Fused |
| Current Rating - Appliance Inlet | 3A |
| Voltage Rating - Appliance Inlet | 250VAC |
| Current Rating - Filter | 3A |
| Current Rating - Circuit Breaker | - |
