6424.0251.10
PWR ENT MOD RCPT IEC320-C14 PNLManufacturer: SCHURTER Inc.
Categories: Power Entry Modules (PEM)
Quality Control: Learn More

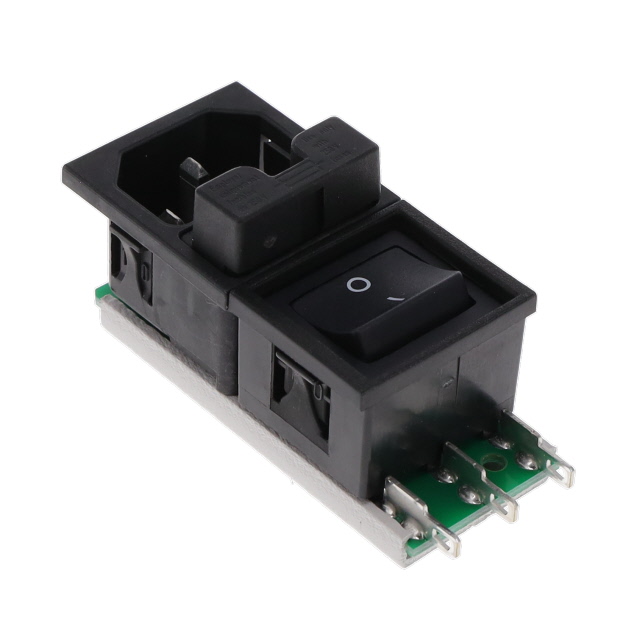

The SCHURTER Inc. FELCOM 64 series 6424-0251-10 is an unfiltered power entry module featuring an IEC 320-C14 receptacle. This panel-mount, snap-in component is designed for 250VAC and a 10A current rating at the appliance inlet. It incorporates a 3-position switch for power control and a fuse holder, accommodating a fuse not included with the unit. Termination is via solder eyelets. Constructed with UL94 V-0 rated materials, this module is suitable for applications requiring robust power entry solutions in commercial equipment, medical devices, and industrial automation. Panel cutout dimensions are rectangular: 27.60mm x 57.00mm for panel thicknesses of 0.039" (1.00mm). Approvals include CSA, ENEC, and UL. The product is supplied in bulk packaging.
Additional Information
Series: FELCOM 64RoHS Status: ROHS3 CompliantManufacturer Lead Time: 51 week(s)Product Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Filter Type | Unfiltered - Commercial |
| Connector Type | Receptacle, Male Blades - Module |
| Mounting Type | Panel Mount, Snap-In |
| Number of Positions | 3 |
| Termination | Solder Eyelet |
| Approval Agency | CSA, ENEC, UL |
| Ingress Protection | - |
| Panel Thickness | 0.039"" (1.00mm) |
| Panel Cutout Dimensions | Rectangular - 27.60mm x 57.00mm |
| Connector Style | IEC 320-C14 |
| Material Flammability Rating | UL94 V-0 |
| Accomodates a Fuse | Yes (Fuse Not Included) |
| Switch Features | Switch On-Off |
| Fuse Holder, Drawer | Fuse Holder |
| Current Rating - Appliance Inlet | 10A |
| Voltage Rating - Appliance Inlet | 250VAC |
| Current Rating - Filter | - |
| Current Rating - Circuit Breaker | - |
