6130.5630.05
PWR ENT RCPT IEC320-C14 PNL SLDRManufacturer: SCHURTER Inc.
Categories: Power Entry Modules (PEM)
Quality Control: Learn More

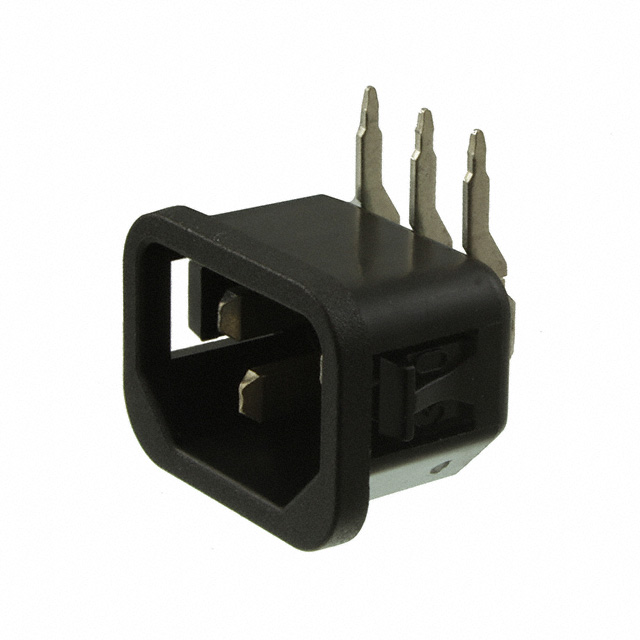

The SCHURTER Inc. 6130-5630-05 is a panel mount power entry receptacle from the 6130-56 series. This IEC 320-C14 connector features male blades and a snap-in mounting style with through-hole termination for right-angle connections. Rated for 10A and 250VAC, it is designed for commercial applications and boasts UL94 V-0 material flammability. The receptacle offers IP30 ingress protection and requires a rectangular panel cutout of 27.50mm x 19.50mm for panels up to 0.118" (3.00mm) thick. Approvals include CCC, CSA, ENEC, and UL. This unfiltered component is commonly utilized in IT equipment, medical devices, and industrial control systems.
Additional Information
Series: 6130-56RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Filter Type | Unfiltered - Commercial |
| Connector Type | Receptacle, Male Blades |
| Mounting Type | Panel Mount, Snap-In; Through Hole, Right Angle |
| Number of Positions | 3 |
| Termination | Solder |
| Approval Agency | CCC, CSA, ENEC, UL |
| Ingress Protection | IP30 |
| Panel Thickness | 0.118"" (3.00mm) |
| Panel Cutout Dimensions | Rectangular - 27.50mm x 19.50mm |
| Connector Style | IEC 320-C14 |
| Material Flammability Rating | UL94 V-0 |
| Accomodates a Fuse | No |
| Switch Features | - |
| Fuse Holder, Drawer | - |
| Current Rating - Appliance Inlet | 10A |
| Voltage Rating - Appliance Inlet | 250VAC |
| Current Rating - Filter | - |
| Current Rating - Circuit Breaker | - |
