6100.3100.33
PWR ENT RCPT IEC320-C14 PANEL QCManufacturer: SCHURTER Inc.
Categories: Power Entry Modules (PEM)
Quality Control: Learn More

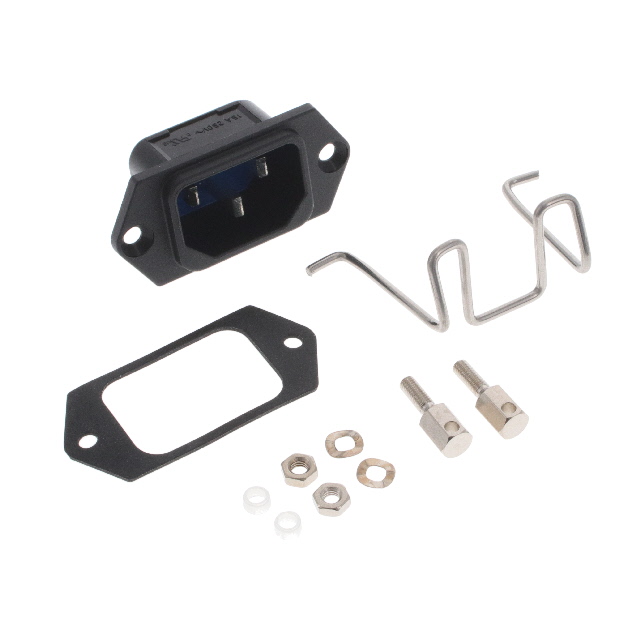

Power Entry Connector Receptacle, Male Blades IEC 320-C14 Panel Mount, Flange
Additional Information
Series: 6100-3RoHS Status: ROHS3 CompliantManufacturer Lead Time: 6 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Filter Type | Unfiltered - Commercial |
| Connector Type | Receptacle, Male Blades |
| Mounting Type | Panel Mount, Flange |
| Number of Positions | 3 |
| Termination | Solder, Quick Connect - 0.183"" (3.5mm) |
| Approval Agency | CCC, cULus, ENEC |
| Ingress Protection | IP54 |
| Panel Thickness | 0.315"" (8.00mm) |
| Panel Cutout Dimensions | - |
| Connector Style | IEC 320-C14 |
| Material Flammability Rating | UL94 V-0 |
| Accomodates a Fuse | No |
| Switch Features | - |
| Fuse Holder, Drawer | - |
| Current Rating - Appliance Inlet | 10A |
| Voltage Rating - Appliance Inlet | 250VAC |
| Current Rating - Filter | - |
| Current Rating - Circuit Breaker | - |
