5707.0205.312.01

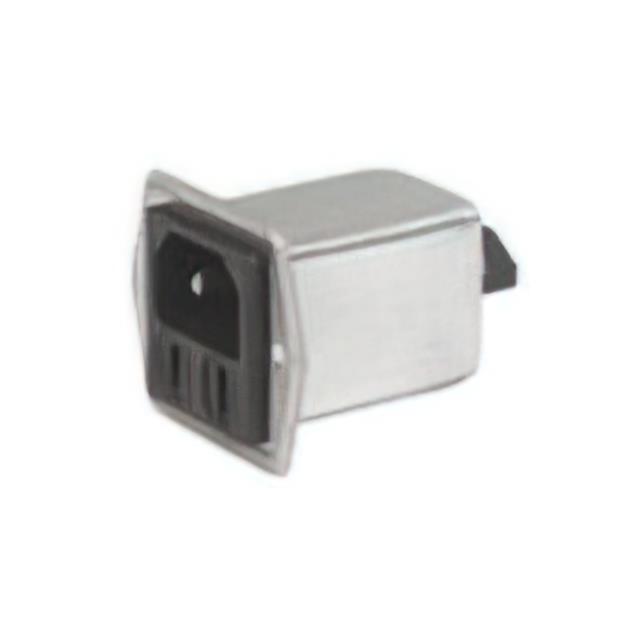

5707 PEM WITH FILTER 2A M80Manufacturer: SCHURTER Inc.
Categories: Power Entry Modules (PEM)
Quality Control: Learn More
Power Entry Connector Receptacle, Male Blades IEC 320-C18 Panel Mount, Flange
Additional Information
Series: 5707RoHS Status: ROHS3 CompliantManufacturer Lead Time: 9 week(s)Product Status: ActivePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Features | Front Side Mount |
| Packaging | Box |
| Filter Type | Filtered (EMI, RFI) - Commercial, Medical |
| Connector Type | Receptacle, Male Blades |
| Mounting Type | Panel Mount, Flange |
| Number of Positions | 2 |
| Termination | Quick Connect - 0.250"" (6.3mm) |
| Approval Agency | CCC, cULus, ENEC |
| Ingress Protection | IP65 |
| Panel Thickness | 0.118"" (3.00mm) |
| Panel Cutout Dimensions | Rectangular - 29.20mm x 32.20mm |
| Connector Style | IEC 320-C18 |
| Material Flammability Rating | UL94 V-0 |
| Accomodates a Fuse | Yes (Fuse Not Included) |
| Switch Features | - |
| Fuse Holder, Drawer | Fuse Holder, Twin Fused |
| Current Rating - Appliance Inlet | 2A |
| Voltage Rating - Appliance Inlet | 250VAC |
| Current Rating - Filter | 2A |
| Current Rating - Circuit Breaker | - |
