5150.0021.1
PWR ENT RCPT IEC320-C14 PANEL QCManufacturer: SCHURTER Inc.
Categories: Power Entry Modules (PEM)
Quality Control: Learn More

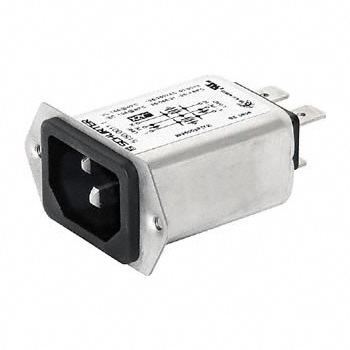

The SCHURTER Inc. 5150 series 5150-0021-1 is a power entry module featuring an IEC 320-C14 receptacle with male blades. This panel mount, flange-style connector is designed for a 250VAC voltage rating and a 10A current rating. It offers EMI/RFI filtering for commercial applications and a shielded design. The unit has a 3-position configuration and utilizes quick connect termination (0.250" or 6.3mm). It is constructed with UL94 V-0 rated materials for flammability and provides IP40 ingress protection. Panel mounting requires a rectangular cutout of 30.50mm x 22.50mm. This component is suitable for use in industrial and IT equipment sectors.
Additional Information
Series: 5150RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Shielded |
| Packaging | Bulk |
| Filter Type | Filtered (EMI, RFI) - Commercial |
| Connector Type | Receptacle, Male Blades |
| Mounting Type | Panel Mount, Flange |
| Number of Positions | 3 |
| Termination | Quick Connect - 0.250"" (6.3mm) |
| Approval Agency | cULus, ENEC |
| Ingress Protection | IP40 |
| Panel Thickness | - |
| Panel Cutout Dimensions | Rectangular - 30.50mm x 22.50mm |
| Connector Style | IEC 320-C14 |
| Material Flammability Rating | UL94 V-0 |
| Accomodates a Fuse | No |
| Switch Features | - |
| Fuse Holder, Drawer | - |
| Current Rating - Appliance Inlet | 10A |
| Voltage Rating - Appliance Inlet | 250VAC |
| Current Rating - Filter | 10A |
| Current Rating - Circuit Breaker | - |
