5150.0021.0
PWR ENT RCPT IEC320-C14 PANEL QCManufacturer: SCHURTER Inc.
Categories: Power Entry Modules (PEM)
Quality Control: Learn More

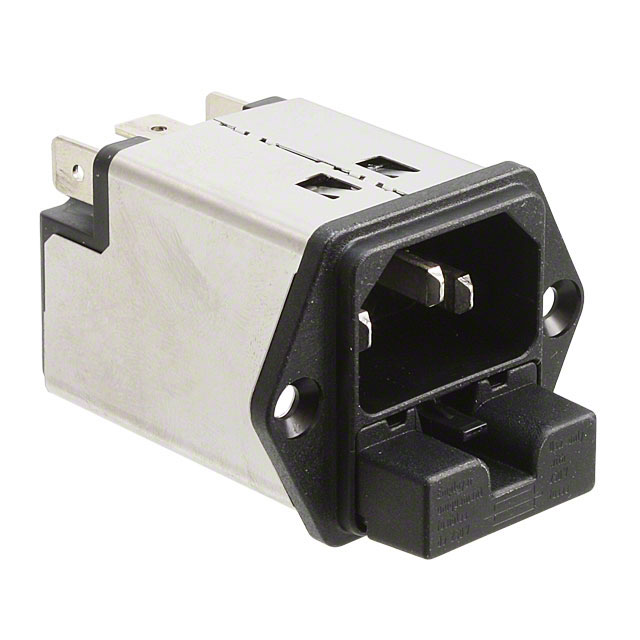

The SCHURTER Inc. 5150 series, part number 5150-0021-0, is a filtered power entry receptacle with IEC 320-C14 appliance inlet connector. This panel-mount component features male blades and is designed for flange mounting with a rectangular panel cutout of 29.00mm x 21.50mm. It offers a 3-position configuration and quick connect termination (0.250" / 6.3mm). The receptacle is rated for 250VAC and a current of 10A, with EMI/RFI filtering suitable for commercial applications. Constructed with UL94 V-0 rated material for flammability, it provides IP40 ingress protection and is shielded. Approvals include cULus and ENEC. This component is utilized in various industrial equipment and IT infrastructure applications requiring reliable power entry with filtering.
Additional Information
Series: 5150RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Shielded |
| Packaging | Bulk |
| Filter Type | Filtered (EMI, RFI) - Commercial |
| Connector Type | Receptacle, Male Blades |
| Mounting Type | Panel Mount, Flange |
| Number of Positions | 3 |
| Termination | Quick Connect - 0.250"" (6.3mm) |
| Approval Agency | cULus, ENEC |
| Ingress Protection | IP40 |
| Panel Thickness | - |
| Panel Cutout Dimensions | Rectangular - 29.00mm x 21.50mm |
| Connector Style | IEC 320-C14 |
| Material Flammability Rating | UL94 V-0 |
| Accomodates a Fuse | No |
| Switch Features | - |
| Fuse Holder, Drawer | - |
| Current Rating - Appliance Inlet | 10A |
| Voltage Rating - Appliance Inlet | 250VAC |
| Current Rating - Filter | 10A |
| Current Rating - Circuit Breaker | - |
