5120.2207.0.21
PWR ENT RCPT IEC320-C14 PANEL QCManufacturer: SCHURTER Inc.
Categories: Power Entry Modules (PEM)
Quality Control: Learn More

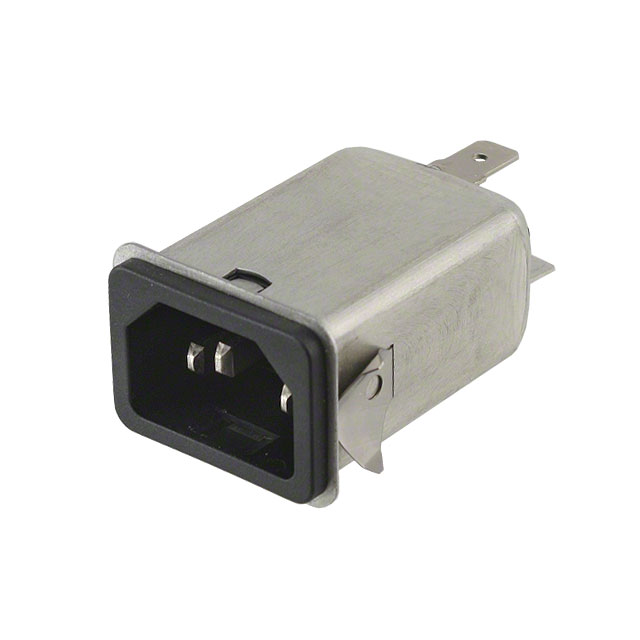

The SCHURTER Inc. 5120 series power entry module, part number 5120-2207-0-21, is a filtered receptacle with IEC 320-C14 connector style and male blades. This panel mount component features a snap-in mounting type with a rectangular cutout of 29.40mm x 21.50mm, suitable for panel thicknesses from 0.79mm to 2.00mm. It offers quick connect termination of 0.250" (6.3mm) and is rated IP40 for ingress protection. The design includes a bleed resistor and a V-Lock notch for enhanced functionality, alongside EMI/RFI filtering for commercial applications. Material flammability is UL94 V-0. Approved by CCC, cULus, and ENEC, this component is widely utilized in IT equipment, medical devices, and industrial automation systems.
Additional Information
Series: 5120RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Bleed Resistor, Shielded, V-Lock Notch |
| Packaging | Bulk |
| Filter Type | Filtered (EMI, RFI) - Commercial |
| Connector Type | Receptacle, Male Blades |
| Mounting Type | Panel Mount, Snap-In |
| Number of Positions | 3 |
| Termination | Quick Connect - 0.250"" (6.3mm) |
| Approval Agency | CCC, cULus, ENEC |
| Ingress Protection | IP40 |
| Panel Thickness | 0.031"" ~ 0.079"" (0.79mm ~ 2.00mm) |
| Panel Cutout Dimensions | Rectangular - 29.40mm x 21.50mm |
| Connector Style | IEC 320-C14 |
| Material Flammability Rating | UL94 V-0 |
| Accomodates a Fuse | No |
| Switch Features | - |
| Fuse Holder, Drawer | - |
| Current Rating - Appliance Inlet | - |
| Voltage Rating - Appliance Inlet | - |
| Current Rating - Filter | - |
| Current Rating - Circuit Breaker | - |
