5120.1301.1
PWR ENT RCPT IEC320-C18 PANEL QCManufacturer: SCHURTER Inc.
Categories: Power Entry Modules (PEM)
Quality Control: Learn More

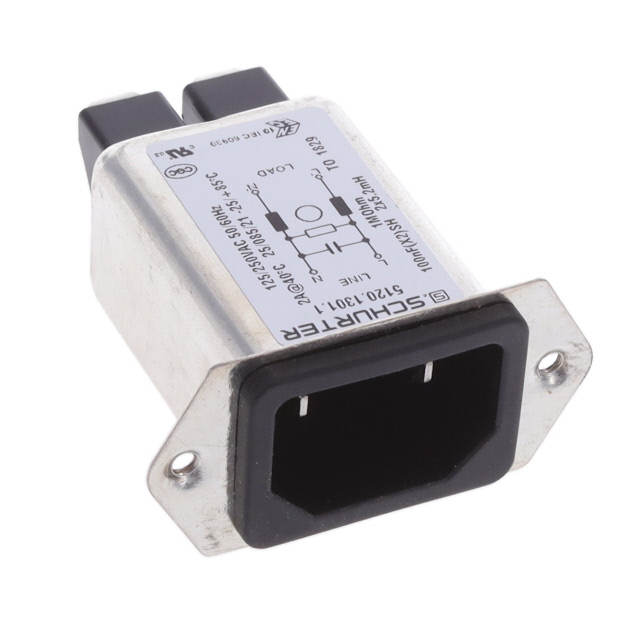

Power Entry Connector Receptacle, Male Blades IEC 320-C18 Panel Mount, Flange
Additional Information
Series: 5120RoHS Status: ROHS3 CompliantManufacturer Lead Time: 9 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Shielded |
| Packaging | Bulk |
| Filter Type | Filtered (EMI, RFI) - Commercial, Medical |
| Connector Type | Receptacle, Male Blades |
| Mounting Type | Panel Mount, Flange |
| Number of Positions | 2 |
| Termination | Quick Connect - 0.250"" (6.3mm) |
| Approval Agency | CCC, cULus, ENEC |
| Ingress Protection | IP40 |
| Panel Thickness | - |
| Panel Cutout Dimensions | Variable Size |
| Connector Style | IEC 320-C18 |
| Material Flammability Rating | UL94 V-0 |
| Accomodates a Fuse | No |
| Switch Features | - |
| Fuse Holder, Drawer | - |
| Current Rating - Appliance Inlet | 2A |
| Voltage Rating - Appliance Inlet | 250VAC |
| Current Rating - Filter | 2A |
| Current Rating - Circuit Breaker | - |
