5120.1006.0.21
PWR ENT RCPT IEC320-C14 PANEL QCManufacturer: SCHURTER Inc.
Categories: Power Entry Modules (PEM)
Quality Control: Learn More

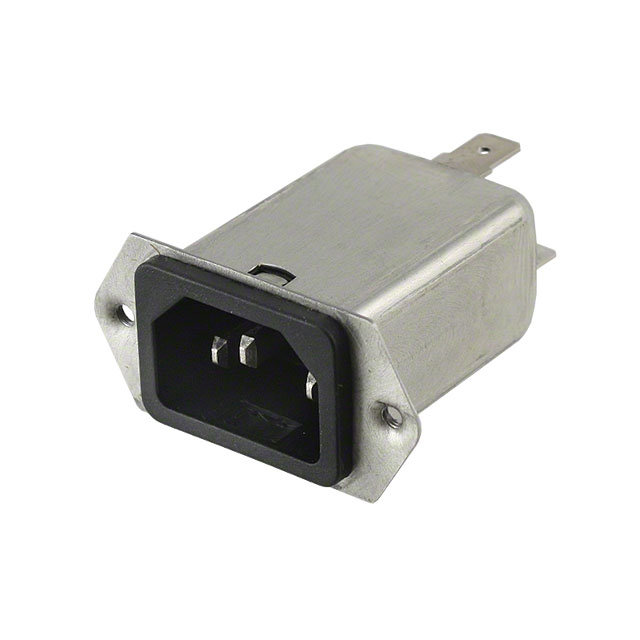

SCHURTER Inc. 5120 series Power Entry Connector Receptacle, part number 5120-1006-0-21. This IEC 320-C14 panel mount receptacle features male blades and a flange for secure mounting. Designed for efficient EMI/RFI filtering, it offers a 10A current rating at 250VAC and is constructed with UL94 V-0 rated materials. The connector includes a V-Lock notch for cable retention and quick connect termination (0.250" / 6.3mm). Approval agencies include CCC, cULus, and ENEC. This component is suitable for applications in industrial automation, medical equipment, and test and measurement instrumentation. The ingress protection rating is IP40.
Additional Information
Series: 5120RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Shielded, V-Lock Notch |
| Packaging | Bulk |
| Filter Type | Filtered (EMI, RFI) - Commercial |
| Connector Type | Receptacle, Male Blades |
| Mounting Type | Panel Mount, Flange |
| Number of Positions | 3 |
| Termination | Quick Connect - 0.250"" (6.3mm) |
| Approval Agency | CCC, cULus, ENEC |
| Ingress Protection | IP40 |
| Panel Thickness | - |
| Panel Cutout Dimensions | Variable Size |
| Connector Style | IEC 320-C14 |
| Material Flammability Rating | UL94 V-0 |
| Accomodates a Fuse | No |
| Switch Features | - |
| Fuse Holder, Drawer | - |
| Current Rating - Appliance Inlet | 10A |
| Voltage Rating - Appliance Inlet | 250VAC |
| Current Rating - Filter | 10A |
| Current Rating - Circuit Breaker | - |
