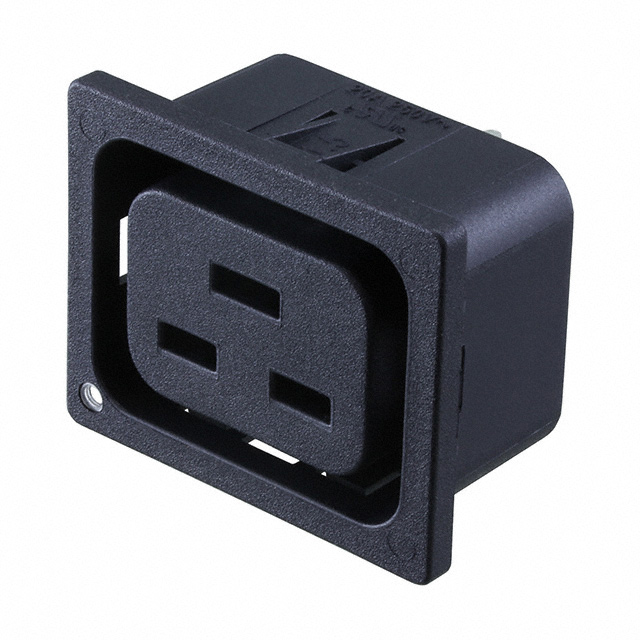

4797-5-444-0300-151-00
PWR ENT RCPT IEC320-2-2J PANELManufacturer: SCHURTER Inc.
Categories: Power Entry Modules (PEM)
Quality Control: Learn More
Power Entry Connector Receptacle, Female Sockets IEC 320-2-2/J Panel Mount, Snap-In; Through Hole
Additional Information
Series: 4797-5RoHS Status: ROHS3 CompliantManufacturer Lead Time: 28 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Light Pipe |
| Packaging | Bulk |
| Filter Type | Unfiltered - Commercial |
| Connector Type | Receptacle, Female Sockets |
| Mounting Type | Panel Mount, Snap-In; Through Hole |
| Number of Positions | 3 |
| Termination | Solder Tabs |
| Approval Agency | cURus, ENEC |
| Ingress Protection | IP40 |
| Panel Thickness | 0.059"" (1.50mm) |
| Panel Cutout Dimensions | Rectangular - 37.60mm x 29.50mm |
| Connector Style | IEC 320-2-2/J |
| Material Flammability Rating | UL94 V-0 |
| Accomodates a Fuse | No |
| Switch Features | - |
| Fuse Holder, Drawer | - |
| Current Rating - Appliance Inlet | 16A |
| Voltage Rating - Appliance Inlet | 250V |
| Current Rating - Filter | - |
| Current Rating - Circuit Breaker | - |
Request a Quote
Clients Also Buy

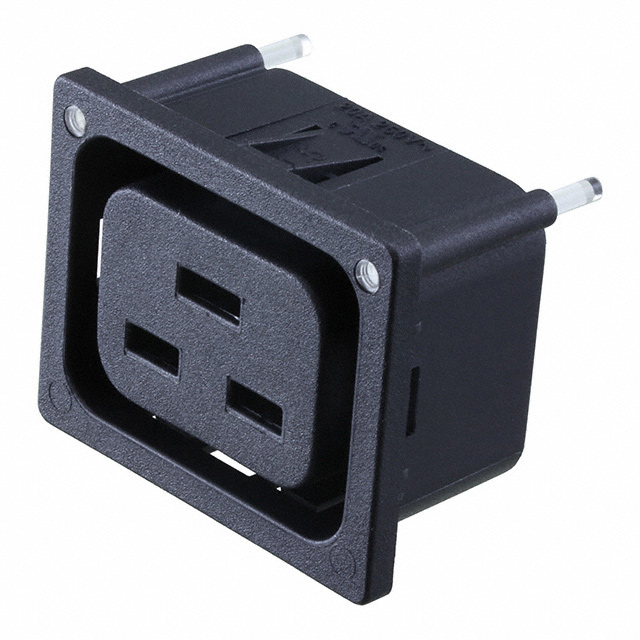

4797-5-444-0033-151-00
PWR ENT RCPT IEC320-2-2J PANEL

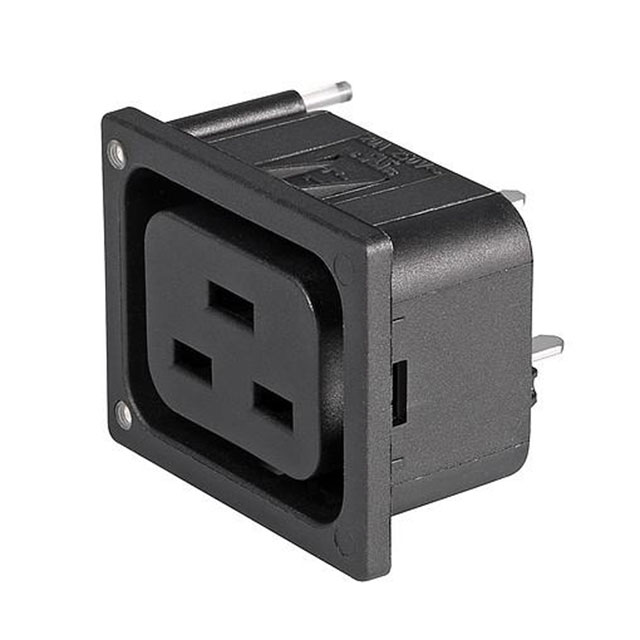

4797-5-444-0330-151-00
