3-145-176

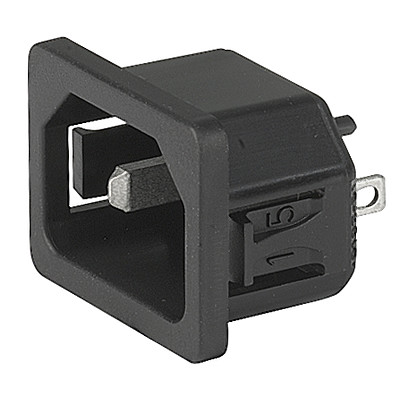

6102-5 CONNECTOR INLET 10A C18Manufacturer: SCHURTER Inc.
Categories: Power Entry Modules (PEM)
Quality Control: Learn More
Power Entry Connector Receptacle, Male Blades IEC 320-C18 Panel Mount, Snap-In
Additional Information
Series: 6102-5RoHS Status: ROHS3 CompliantManufacturer Lead Time: 6 week(s)Product Status: ActivePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Box |
| Filter Type | Unfiltered - Commercial |
| Connector Type | Receptacle, Male Blades |
| Mounting Type | Panel Mount, Snap-In |
| Number of Positions | 2 |
| Termination | Quick Connect - 0.189"" (4.8mm) |
| Approval Agency | CCC, cULus, ENEC |
| Ingress Protection | IP30 |
| Panel Thickness | 0.118"" (3.00mm) |
| Panel Cutout Dimensions | Rectangular - 27.50mm x 20.00mm |
| Connector Style | IEC 320-C18 |
| Material Flammability Rating | UL94 V-0 |
| Accomodates a Fuse | No |
| Switch Features | - |
| Fuse Holder, Drawer | - |
| Current Rating - Appliance Inlet | 10A |
| Voltage Rating - Appliance Inlet | 250VAC |
| Current Rating - Filter | - |
| Current Rating - Circuit Breaker | - |
