3-111-264
PWR ENT MOD RCPT IEC320-C14 PNLManufacturer: SCHURTER Inc.
Categories: Power Entry Modules (PEM)
Quality Control: Learn More

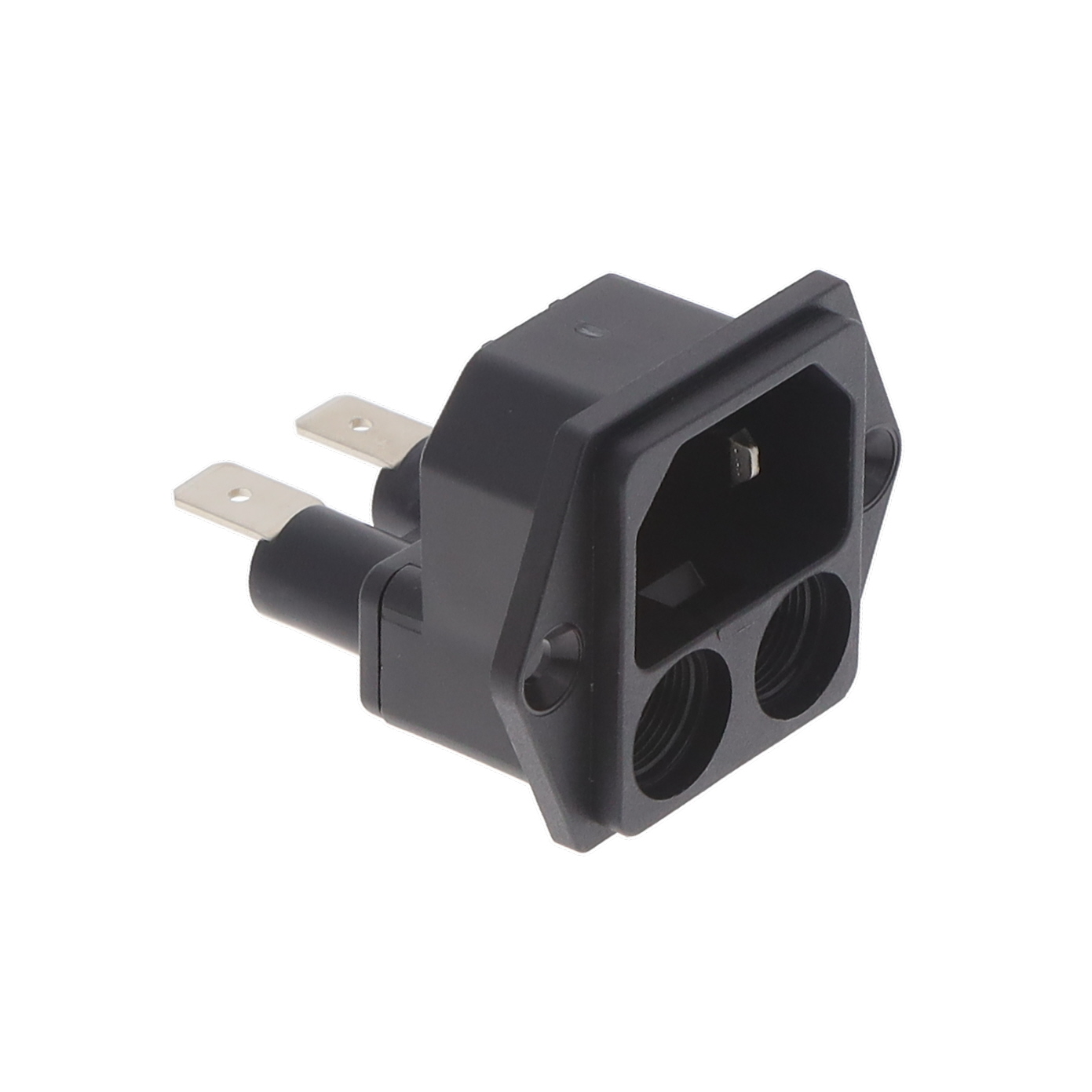

Power Entry Connector Receptacle, Male Blades - Module IEC 320-C18 Panel Mount, Flange
Additional Information
Series: 4707RoHS Status: ROHS3 CompliantManufacturer Lead Time: 7 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Front or Rear Side Mount |
| Packaging | Bulk |
| Filter Type | - |
| Connector Type | Receptacle, Male Blades - Module |
| Mounting Type | Panel Mount, Flange |
| Number of Positions | 3 |
| Termination | Quick Connect - 0.250"" (6.3mm) |
| Approval Agency | cULus, ENEC |
| Ingress Protection | IP40 |
| Panel Thickness | 0.236"" (6.00mm) |
| Panel Cutout Dimensions | Variable Size |
| Connector Style | IEC 320-C18 |
| Material Flammability Rating | UL94 V-0 |
| Accomodates a Fuse | Yes (Fuse Not Included) |
| Switch Features | - |
| Fuse Holder, Drawer | Fuse Holder, Twin Fused |
| Current Rating - Appliance Inlet | 10A |
| Voltage Rating - Appliance Inlet | 250VAC |
| Current Rating - Filter | - |
| Current Rating - Circuit Breaker | - |
