3-147-622

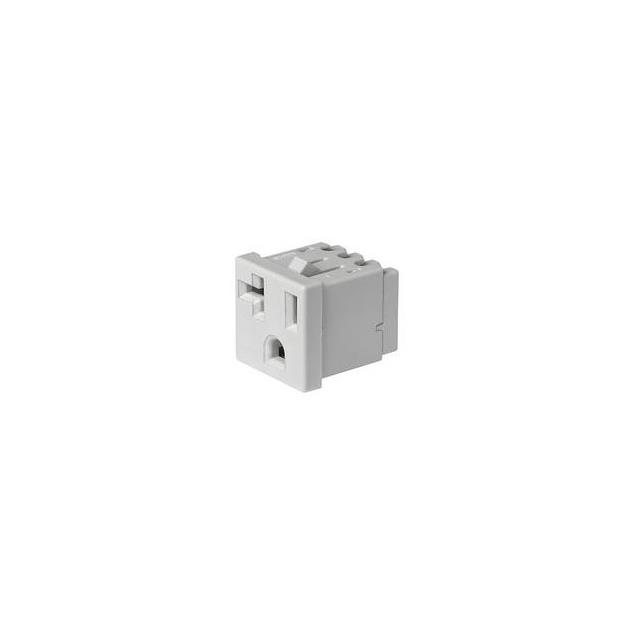

NR520 CONNECTOR OUTLET 20A 5-20RManufacturer: SCHURTER Inc.
Categories: Plugs and Receptacles
Quality Control: Learn More
Power Connector Receptacle, Female Sockets NEMA 5-20R Panel Mount, Snap-In
Additional Information
Series: NR520RoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: ActivePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Box |
| Connector Type | Receptacle, Female Sockets |
| Voltage Rating | 125VAC |
| Current Rating (Amps) | 20A |
| Mounting Type | Panel Mount, Snap-In |
| Number of Positions | 3 |
| Termination | IDC |
| Approval Agency | CSA, cURus, UL |
| Ingress Protection | IP20 |
| Panel Thickness | 0.031"" ~ 0.079"" (0.79mm ~ 2.00mm) |
| Panel Cutout Dimensions | Square - 24.50mm x 24.50mm |
| Connector Style | NEMA 5-20R |
| Material Flammability Rating | UL94 V-0 |
Request a Quote
