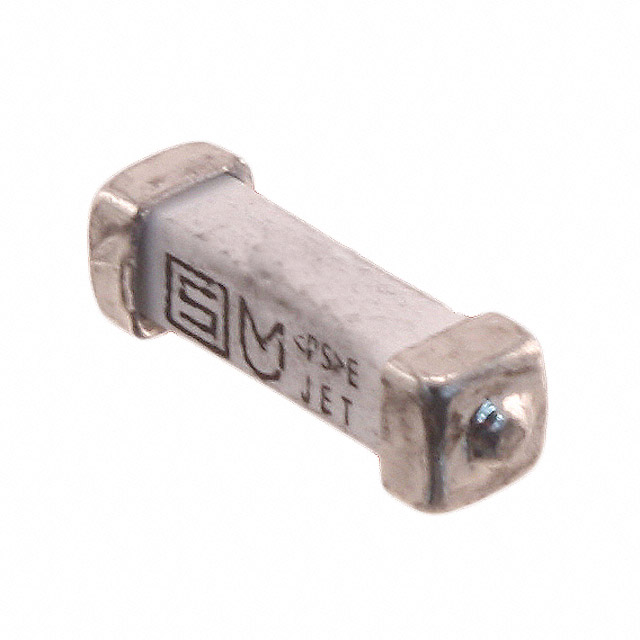

3403.0172.24
FUSE BRD MT 4A 250VAC 125VDC SMDManufacturer: SCHURTER Inc.
Categories: Fuses
Quality Control: Learn More
4 A 250 V AC 125 V DC Fuse Board Mount (Cartridge Style Excluded) Surface Mount 2-SMD, Square End Block
Additional Information
Series: UMT 250RoHS Status: ROHS3 CompliantManufacturer Lead Time: 9 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 2-SMD, Square End Block |
| Color | - |
| Size / Dimension | 0.398"" L x 0.118"" W x 0.118"" H (10.10mm x 3.00mm x 3.00mm) |
| Fuse Type | Board Mount (Cartridge Style Excluded) |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 125°C |
| Response Time | Slow Blow |
| Approval Agency | CQC, cURus, KC, PSE/JET, UL, VDE |
| Breaking Capacity @ Rated Voltage | 200A AC, 35A DC |
| Current Rating (Amps) | 4 A |
| Voltage Rating - AC | 250 V |
| Voltage Rating - DC | 125 V |
| Melting I²t | 26.0 |
Request a Quote
Clients Also Buy

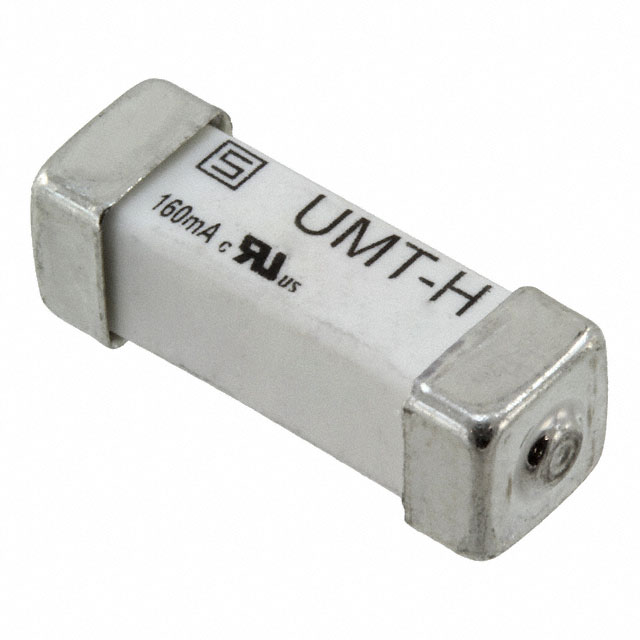

3403.0266.23
FUSE BRD MNT 160MA 277VAC 250VDC

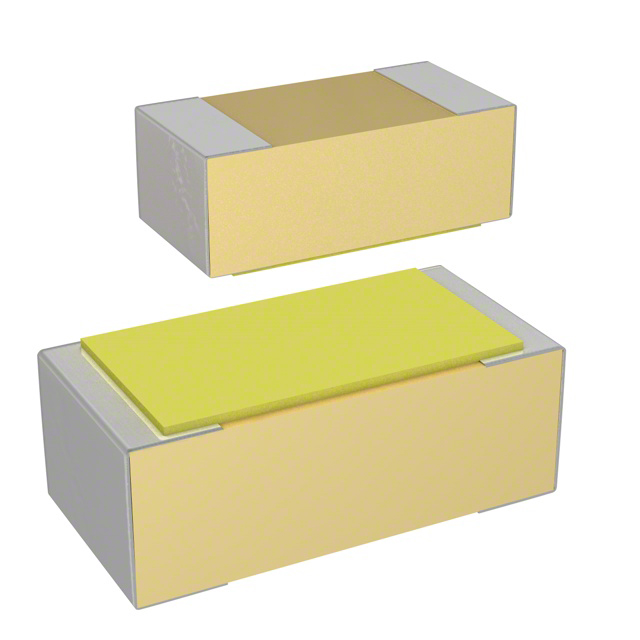

3412.0121.22
FUSE BRD MNT 3A 32VAC 63VDC 0603

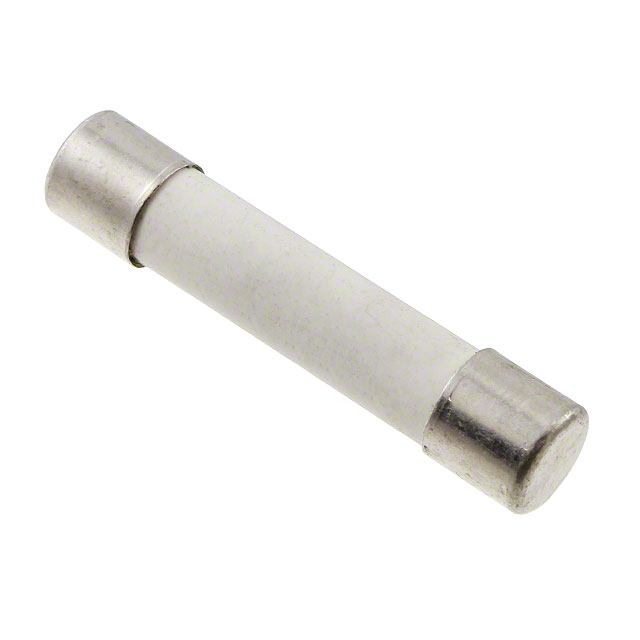

8020.5077
