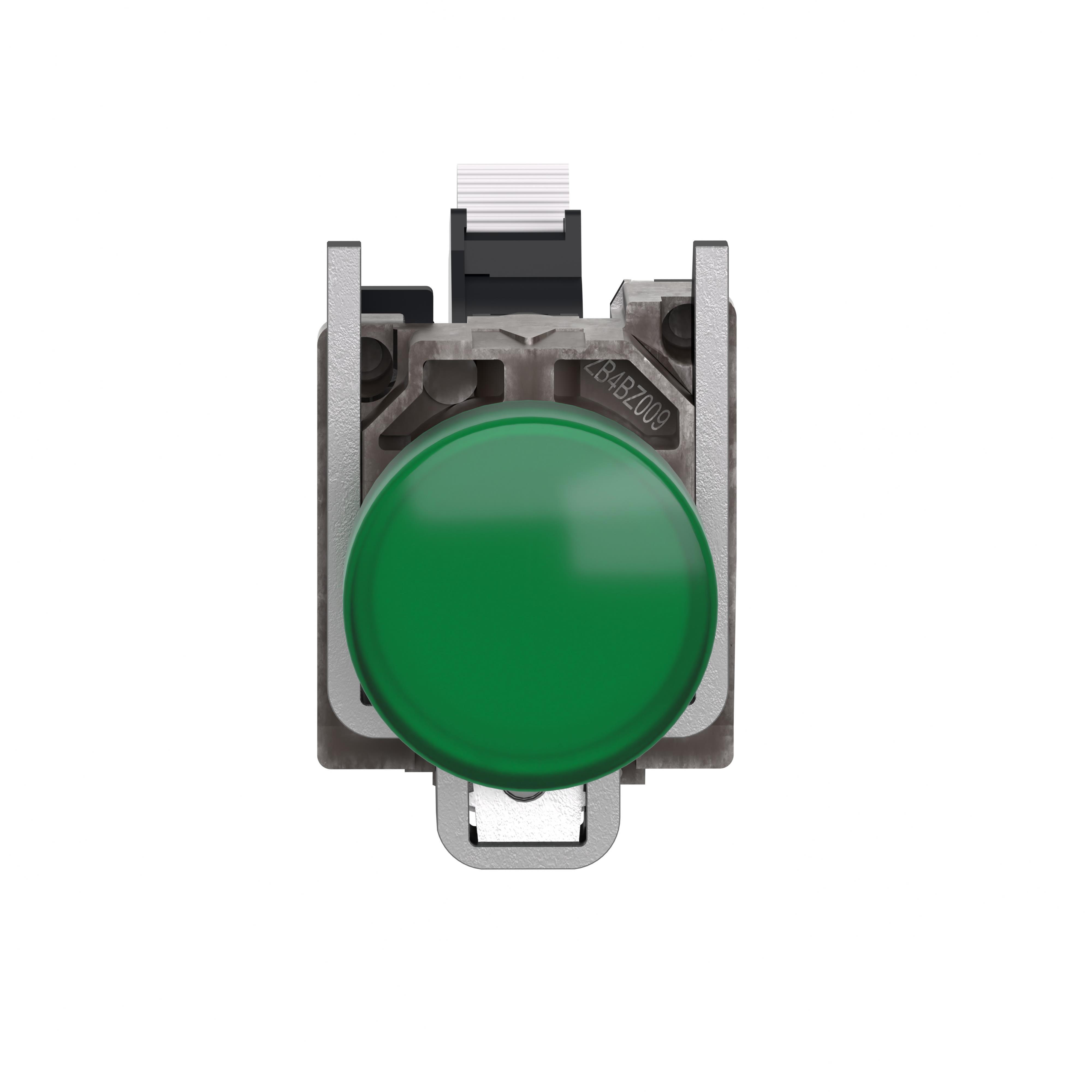

XB4BVG35
GREEN PILOT LIGHT HEAD+ SPRG TRMManufacturer: Schneider Electric
Categories: Panel Indicators, Pilot Lights
Quality Control: Learn More
Schneider Electric Harmony XB4 XB4BVG35 is a green LED pilot light head with spring terminal connection. This component is designed for panel mounting with a standard 22mm cutout and features a round, flat-top lens. Rated for 110V to 120V AC operation with a 14mA current draw, it offers robust protection with IP66, IP67, IP69, IP69K, NEMA 4X, and 13 ingress protection ratings. Its construction makes it suitable for demanding industrial environments, commonly found in automation, control systems, and machinery applications.
Additional Information
Series: Harmony XB4RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Box |
| Current | 14mA |
| Voltage | 110V ~ 120V |
| Type | LED |
| Millicandela Rating | - |
| Termination Style | Screw Terminal |
| Lens Color | Green |
| Viewing Angle | - |
| Ingress Protection | IP66, IP67, IP69, IP69K, NEMA 4X, 13 |
| Ratings | AC |
| Panel Cutout Dimensions | 0.87"" (22.00mm) |
| Wavelength - Peak | - |
| Lens Transparency | - |
| Lamp Color | Green |
| Panel Cutout Shape | Round |
| Lens Style | Round with Flat Top |
| Lens Size | 22.00mm Dia |
Request a Quote
Clients Also Buy
XB4BVG1
HARMONY XB4, PILOT LIGHT, METAL,

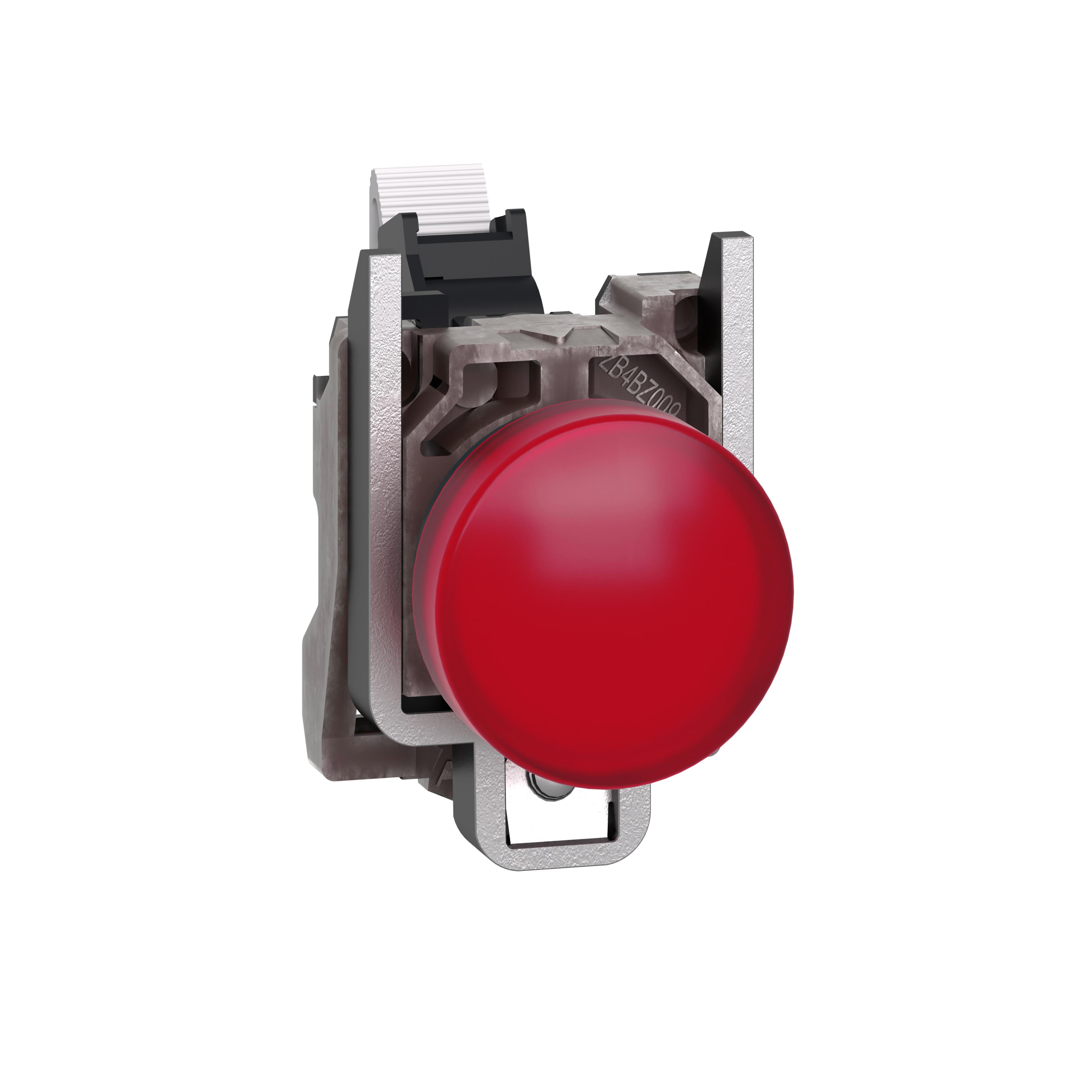

XB4BVG45
