LB1947-E
MOTOR DRIVER ICManufacturer: Sanyo
Categories: Motor Drivers, Controllers
Quality Control: Learn More

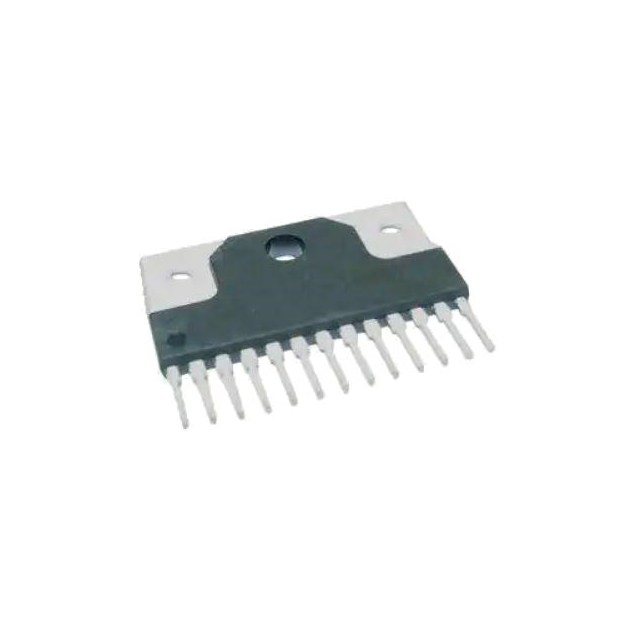

Sanyo LB1947-E is a bipolar motor driver IC designed for brushed DC motor control. This component features a fully integrated driver with control and power stages, offering parallel interface for straightforward integration into system designs. The LB1947-E provides two half-bridge output configurations, capable of delivering up to 2A of output current. It operates with a load voltage range of 10V to 45V and a supply voltage of 4.75V to 5.25V. The device is housed in a 13-SIPHJ package with an exposed tab, suitable for through-hole mounting. Its robust design and operational temperature range of -20°C to 85°C make it applicable in various industrial and consumer electronics sectors requiring precise motor actuation.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 13-SIP Exposed Tab |
| Mounting Type | Through Hole |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Current - Output | 2A |
| Interface | Parallel |
| Operating Temperature | -20°C ~ 85°C (TA) |
| Output Configuration | Half Bridge (2) |
| Voltage - Supply | 4.75V ~ 5.25V |
| Applications | General Purpose |
| Technology | Bipolar |
| Voltage - Load | 10V ~ 45V |
| Supplier Device Package | 13-SIPHJ |
| Motor Type - Stepper | - |
| Motor Type - AC, DC | Brushed DC |
| Step Resolution | - |
