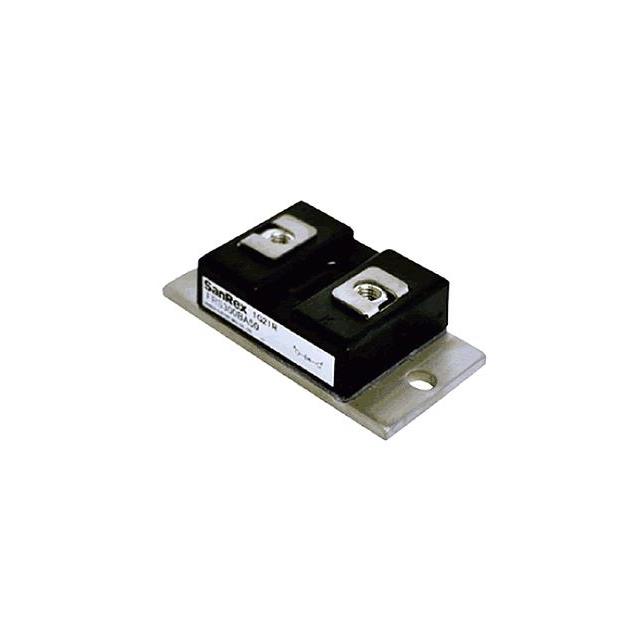

FRS300BA50
DIODE GEN PURP 500V 300AManufacturer: SanRex Corporation
Categories: Single Diodes
Quality Control: Learn More
SanRex Corporation FRS300BA50 is a 500V, 300A general purpose diode designed for chassis mounting. This component features a fast recovery time of 200 ns, suitable for applications requiring efficient switching. With a maximum forward voltage of 1.3V at its rated 300A current, it offers robust performance in high-power rectification. The reverse leakage current is specified at 300mA at 500V. Operating across a junction temperature range of -40°C to 150°C, the FRS300BA50 is engineered for demanding environments found in industrial power supplies, electric vehicle charging, and robust motor control systems. The component is supplied in tray packaging.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: 26 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | Module |
| Mounting Type | Chassis Mount |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 200 ns |
| Technology | Standard |
| Capacitance @ Vr, F | - |
| Current - Average Rectified (Io) | 300A |
| Supplier Device Package | - |
| Operating Temperature - Junction | -40°C ~ 150°C |
| Voltage - DC Reverse (Vr) (Max) | 500 V |
| Voltage - Forward (Vf) (Max) @ If | 1.3 V @ 300 A |
| Current - Reverse Leakage @ Vr | 300 mA @ 500 V |
Request a Quote
Clients Also Buy

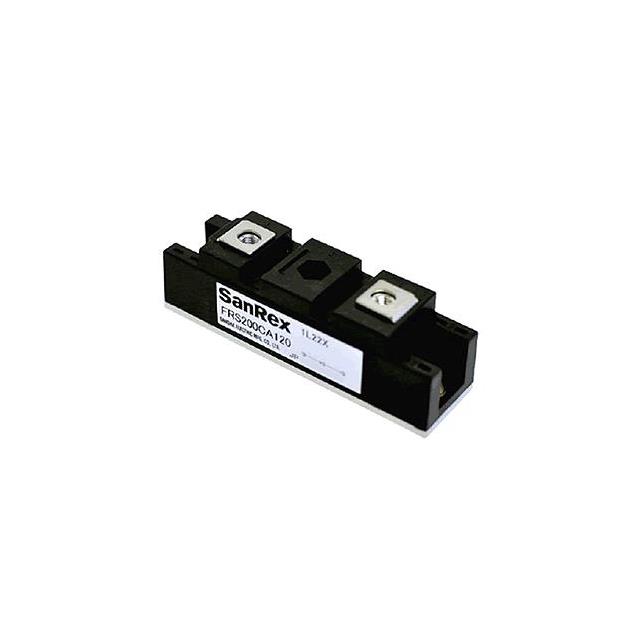

FRS200CA120
