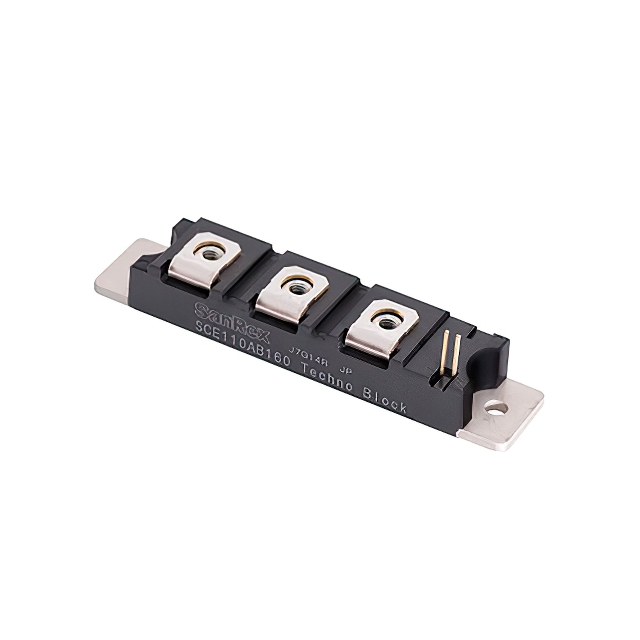

SCE110AB160
THYRISTOR MODULE 1600V 110AManufacturer: SanRex Corporation
Categories: SCRs - Modules
Quality Control: Learn More
SanRex Corporation SCE110AB160 is a high-voltage thyristor module designed for demanding power control applications. This module features a series connection of a thyristor and a diode, providing robust performance with an off-state voltage rating of 1.6 kV. The device offers a maximum average on-state current of 110 A and an RMS on-state current of 172 A, suitable for high-power switching. It exhibits a non-repetitive surge current capability of 2100 A at 50 Hz and 2300 A at 60 Hz. Key trigger parameters include a gate trigger current (Igt) of 150 mA and a gate trigger voltage (Vgt) of 3.2 V. The module operates within a temperature range of -40°C to 150°C (TJ) and is chassis mountable for efficient thermal management. This component is commonly utilized in industrial power supplies, motor drives, and welding equipment.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: 26 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | Module |
| Mounting Type | Chassis Mount |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Structure | Series Connection - SCR/Diode |
| Current - Hold (Ih) (Max) | 150 mA |
| Current - Gate Trigger (Igt) (Max) | 150 mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 2100A, 2300A |
| Number of SCRs, Diodes | 1 SCR, 1 Diode |
| Current - On State (It (AV)) (Max) | 110 A |
| Voltage - Gate Trigger (Vgt) (Max) | 3.2 V |
| Current - On State (It (RMS)) (Max) | 172 A |
| Voltage - Off State | 1.6 kV |
