PWB200AA30

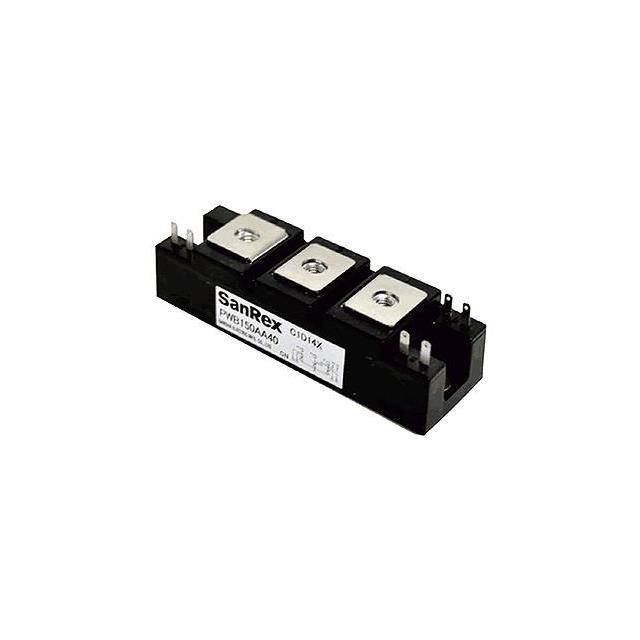

THYRISTOR MODULE 300V 200AManufacturer: SanRex Corporation
Categories: SCRs - Modules
Quality Control: Learn More
SanRex Corporation PWB200AA30 is a 3-phase SCR bridge module featuring three all-SCR configurations. This chassis mount component offers a 300V blocking voltage and a 200A average on-state current (It(AV)), with an RMS on-state current rating of 314A. The module is designed for high surge current handling, with non-repetitive surge capabilities of 5400A at 50Hz and 6000A at 60Hz. Gate trigger characteristics include a maximum voltage (Vgt) of 2V and a maximum trigger current (Igt) of 150mA, with a hold current (Ih) of 70mA. Operating across a temperature range of -40°C to 150°C (TJ), this module is suitable for applications in industrial motor control, power supplies, and welding equipment.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: 26 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | Module |
| Mounting Type | Chassis Mount |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Structure | Bridge, 3-Phase - All SCRs |
| Current - Hold (Ih) (Max) | 70 mA |
| Current - Gate Trigger (Igt) (Max) | 150 mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 5400A, 6000A |
| Number of SCRs, Diodes | 3 SCRs |
| Current - On State (It (AV)) (Max) | 200 A |
| Voltage - Gate Trigger (Vgt) (Max) | 2 V |
| Current - On State (It (RMS)) (Max) | 314 A |
| Voltage - Off State | 300 V |
