DFA150CB80
DIODE MODULE 800V 150AManufacturer: SanRex Corporation
Categories: SCRs - Modules
Quality Control: Learn More

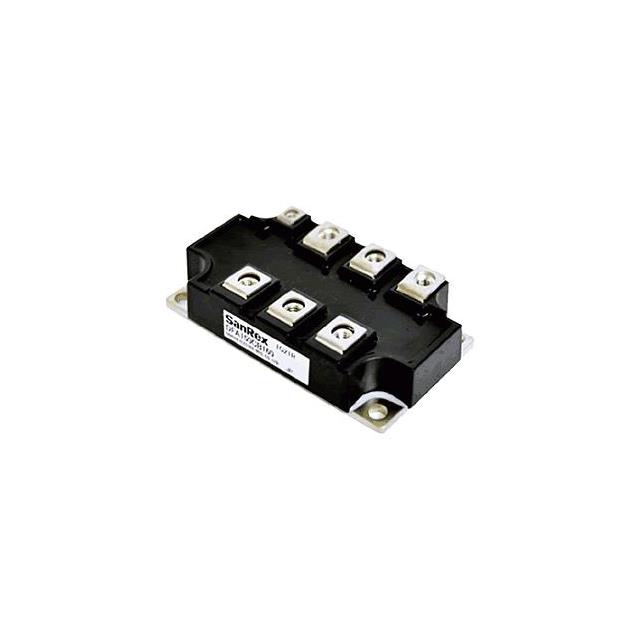

SanRex Corporation DFA150CB80 is a 3-phase SCR/Diode bridge module designed for robust power control applications. This chassis mount component features an 800V off-state voltage rating and a maximum average on-state current of 150A (It(AV)). It incorporates one SCR and six diodes within a single module, simplifying system design and reducing component count. The module exhibits a peak non-repetitive surge current capability of 1460A at 50Hz and 1600A at 60Hz (Itsm). Key gate trigger specifications include a maximum trigger current (Igt) of 70mA and a maximum trigger voltage (Vgt) of 3V. Operating across a temperature range of -40°C to 150°C (TJ), this SanRex module is suitable for demanding industrial environments. Applications include motor drives, power supplies, and welding equipment.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: 26 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | Module |
| Mounting Type | Chassis Mount |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Structure | Bridge, 3-Phase - SCRs/Diodes |
| Current - Gate Trigger (Igt) (Max) | 70 mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 1460A, 1600A |
| Number of SCRs, Diodes | 1 SCR, 6 Diodes |
| Current - On State (It (AV)) (Max) | 150 A |
| Voltage - Gate Trigger (Vgt) (Max) | 3 V |
| Voltage - Off State | 800 V |
