DFA150AA80
DIODE MODULE 800V 150AManufacturer: SanRex Corporation
Categories: SCRs - Modules
Quality Control: Learn More

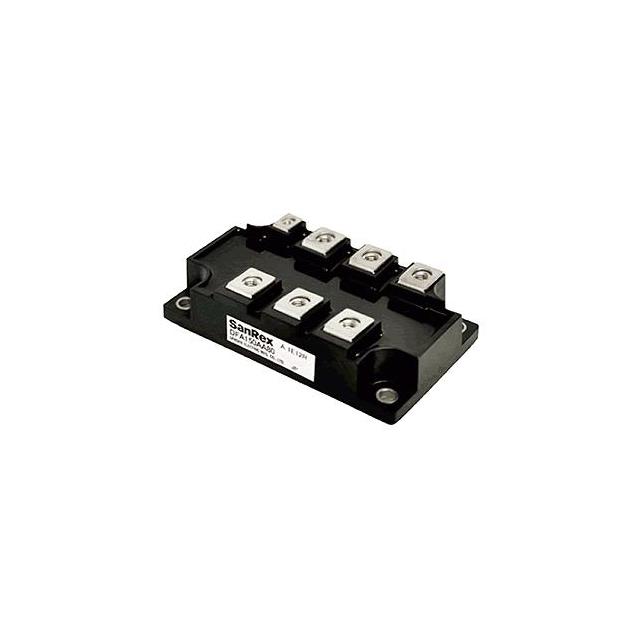

SanRex Corporation DFA150AA80 is an 800V, 150A 3-phase SCR/Diode bridge module. This chassis mount component features a structure comprising one SCR and six diodes. It is rated for a continuous on-state current of 150A (It (AV)) and exhibits a non-repetitive surge current capability of 1460A at 50Hz and 1600A at 60Hz. The module requires a maximum gate trigger current (Igt) of 70 mA and a maximum gate trigger voltage (Vgt) of 3V. Operating temperature ranges from -40°C to 150°C (TJ). This component is commonly employed in industrial power control applications, including motor drives and power supplies. It is supplied in Tray packaging.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: 26 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | Module |
| Mounting Type | Chassis Mount |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Structure | Bridge, 3-Phase - SCRs/Diodes |
| Current - Gate Trigger (Igt) (Max) | 70 mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 1460A, 1600A |
| Number of SCRs, Diodes | 1 SCR, 6 Diodes |
| Current - On State (It (AV)) (Max) | 150 A |
| Voltage - Gate Trigger (Vgt) (Max) | 3 V |
| Voltage - Off State | 800 V |
