DFA100BA160
DIODE MODULE 1600V 100AManufacturer: SanRex Corporation
Categories: SCRs - Modules
Quality Control: Learn More

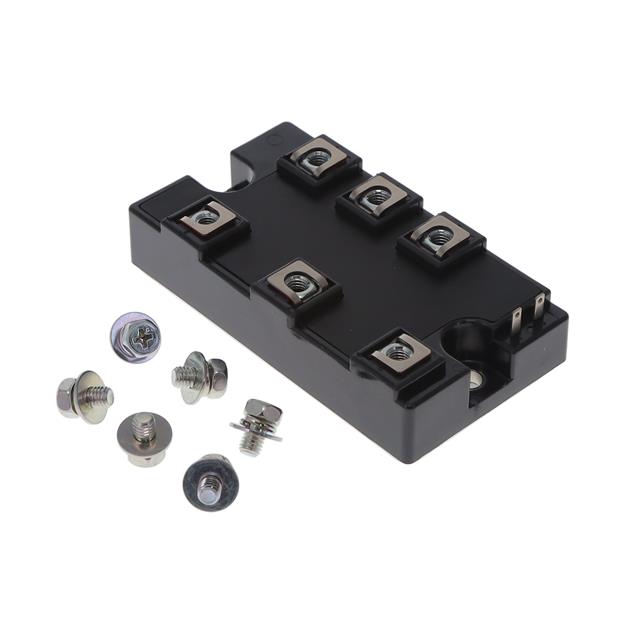

SanRex Corporation DFA100BA160 is a 3-phase SCR/diode bridge module featuring a 1.6 kV blocking voltage. This chassis-mount component is rated for 100 A average on-state current (It(AV)) and offers a peak one-cycle surge current capability of 1186 A at 50 Hz and 1300 A at 60 Hz (Itsm). The module includes one SCR and six diodes, with a gate trigger current (Igt) requirement of 70 mA and a gate trigger voltage (Vgt) of 3 V (max). Operating across a temperature range of -40°C to 150°C (TJ), this module is suitable for applications in industrial power supplies, motor control, and power factor correction systems. It is supplied in Tray packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 26 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | Module |
| Mounting Type | Chassis Mount |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Structure | Bridge, 3-Phase - SCRs/Diodes |
| Current - Gate Trigger (Igt) (Max) | 70 mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 1186A, 1300A |
| Number of SCRs, Diodes | 1 SCR, 6 Diodes |
| Current - On State (It (AV)) (Max) | 100 A |
| Voltage - Gate Trigger (Vgt) (Max) | 3 V |
| Voltage - Off State | 1.6 kV |
