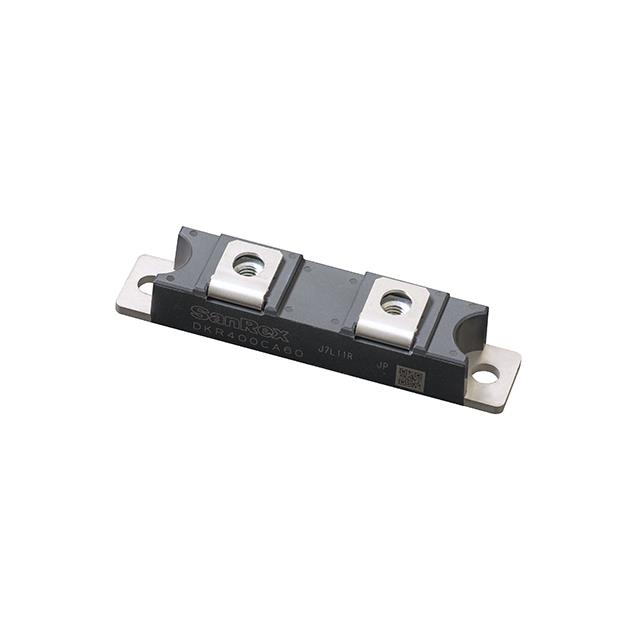

DKR400CA60
DIODE MODULE GP 600V 200AManufacturer: SanRex Corporation
Categories: Diode Arrays
Quality Control: Learn More
SanRex Corporation DKR400CA60 is a high-performance diode module featuring a 1 pair common cathode configuration. This component is rated for a DC reverse voltage of 600V and offers an average rectified current of 200A per diode. The forward voltage drop is a maximum of 1.6V at 200A, with a reverse leakage of 200mA at 600V. Designed for efficient power management, it exhibits a fast recovery time of 200ns. The module is chassis mountable for robust thermal dissipation and operates across a junction temperature range of -40°C to 150°C. This device is commonly utilized in power conversion systems, industrial motor drives, and uninterruptible power supplies. Packaging is supplied in trays.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 26 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | Module |
| Mounting Type | Chassis Mount |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 200 ns |
| Technology | Standard |
| Diode Configuration | 1 Pair Common Cathode |
| Current - Average Rectified (Io) (per Diode) | 200A (DC) |
| Supplier Device Package | - |
| Operating Temperature - Junction | -40°C ~ 150°C |
| Voltage - DC Reverse (Vr) (Max) | 600 V |
| Voltage - Forward (Vf) (Max) @ If | 1.6 V @ 200 A |
| Current - Reverse Leakage @ Vr | 200 mA @ 600 V |
