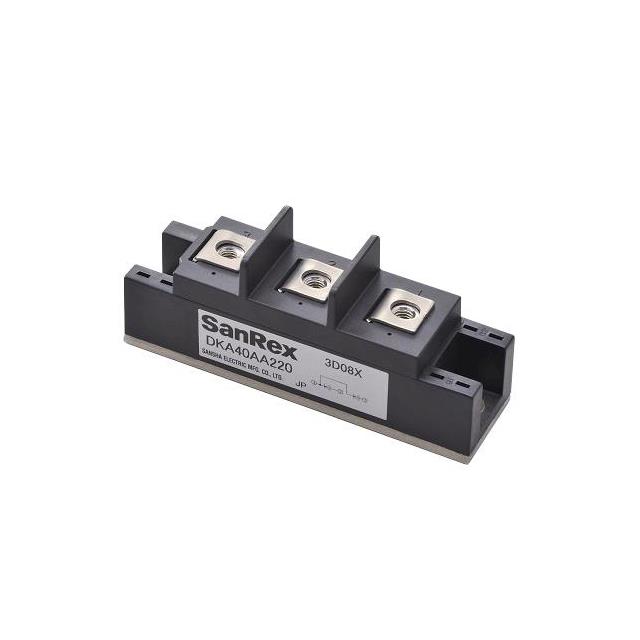

DKA40AA220
DIODE MODULE GP 2200V 20AManufacturer: SanRex Corporation
Categories: Diode Arrays
Quality Control: Learn More
SanRex Corporation DKA40AA220 is a diode module featuring a common cathode configuration with two individual diodes. This component offers a maximum DC reverse voltage (Vr) of 2200 V and an average rectified current (Io) per diode of 20 A. The forward voltage (Vf) is rated at a maximum of 1.15 V at 20 A. Reverse leakage current is specified as 10 mA at its maximum reverse voltage. The DKA40AA220 utilizes standard recovery speed, with a typical recovery time greater than 500 ns for currents exceeding 200 mA. This chassis-mount module operates within a junction temperature range of -40°C to 150°C. It is commonly employed in high-voltage power supply applications and industrial motor control systems where robust rectification and isolation are critical. The component is supplied in tray packaging.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: 26 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | Module |
| Mounting Type | Chassis Mount |
| Speed | Standard Recovery >500ns, > 200mA (Io) |
| Technology | Standard |
| Diode Configuration | 1 Pair Common Cathode |
| Current - Average Rectified (Io) (per Diode) | 20A |
| Supplier Device Package | - |
| Operating Temperature - Junction | -40°C ~ 150°C |
| Voltage - DC Reverse (Vr) (Max) | 2200 V |
| Voltage - Forward (Vf) (Max) @ If | 1.15 V @ 20 A |
| Current - Reverse Leakage @ Vr | 10 mA @ 2200 V |
