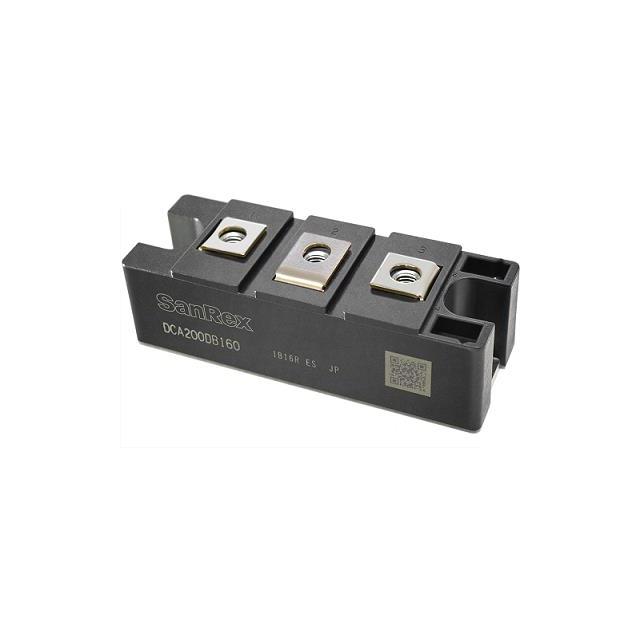

DCA240EB80
DIODE MODULE GP 800V 240AManufacturer: SanRex Corporation
Categories: Diode Arrays
Quality Control: Learn More
SanRex Corporation DCA240EB80 is a high-power diode module featuring a 1 pair series connection configuration. This standard recovery diode array is rated for a maximum DC reverse voltage of 800 V and an average rectified current of 240 A per diode. The forward voltage drop is specified at a maximum of 1.35 V at 750 A. With a reverse leakage current of 50 mA at 800 V, this component is designed for demanding applications. The DCA240EB80 utilizes chassis mounting for efficient thermal management and operates within a junction temperature range of -40°C to 150°C. This module is commonly employed in power supply, industrial motor control, and electric vehicle charging systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 26 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | Module |
| Mounting Type | Chassis Mount |
| Speed | Standard Recovery >500ns, > 200mA (Io) |
| Technology | Standard |
| Diode Configuration | 1 Pair Series Connection |
| Current - Average Rectified (Io) (per Diode) | 240A |
| Supplier Device Package | - |
| Operating Temperature - Junction | -40°C ~ 150°C |
| Voltage - DC Reverse (Vr) (Max) | 800 V |
| Voltage - Forward (Vf) (Max) @ If | 1.35 V @ 750 A |
| Current - Reverse Leakage @ Vr | 50 mA @ 800 V |
