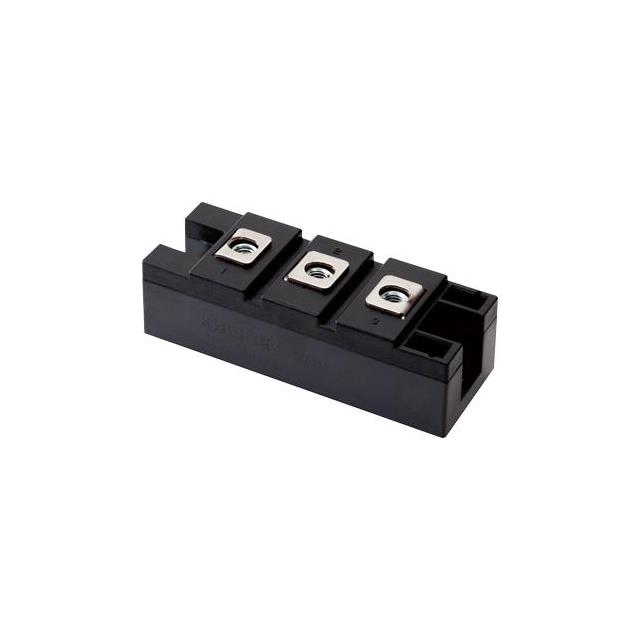

DCA200UA65
DIODE MODULE GP 650V 200AManufacturer: SanRex Corporation
Categories: Diode Arrays
Quality Control: Learn More
SanRex Corporation DCA200UA65 is a high-power diode module featuring a 1 pair series connection configuration. This component offers a maximum DC reverse voltage of 650 V and a continuous average rectified current of 200 A per diode. The forward voltage drop at peak current is 1.7 V at 200 A. Designed for demanding applications, it exhibits a fast recovery time of 360 ns, categorized as fast recovery (<= 500 ns, > 200 mA Io). The module is chassis mountable and operates across a junction temperature range of -40°C to 150°C. It is suitable for use in power conversion, motor control, and industrial power systems. This device is supplied in Tray packaging.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: 26 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | Module |
| Mounting Type | Chassis Mount |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 360 ns |
| Technology | Standard |
| Diode Configuration | 1 Pair Series Connection |
| Current - Average Rectified (Io) (per Diode) | 200A |
| Supplier Device Package | - |
| Operating Temperature - Junction | -40°C ~ 150°C |
| Voltage - DC Reverse (Vr) (Max) | 650 V |
| Voltage - Forward (Vf) (Max) @ If | 1.7 V @ 200 A |
| Current - Reverse Leakage @ Vr | 50 mA @ 650 V |
