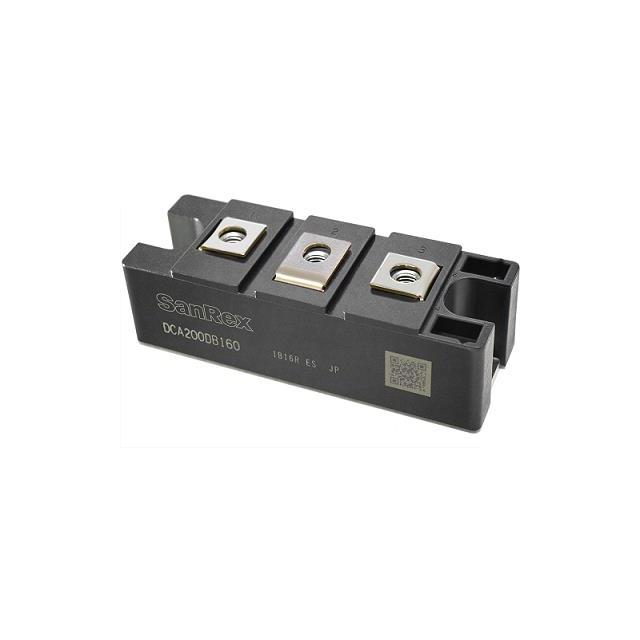

DCA200DB80
DIODE MODULE GP 800V 200AManufacturer: SanRex Corporation
Categories: Diode Arrays
Quality Control: Learn More
SanRex Corporation DCA200DB80 is a diode array featuring a 1 pair series connection configuration. This chassis mount module is rated for a maximum DC reverse voltage of 800V and an average rectified current of 200A per diode. The forward voltage drop is a maximum of 1.3V at 620A, with a reverse leakage current of 50mA at 800V. It utilizes standard recovery technology with a speed classification of >500ns, >200mA (Io). Operating junction temperatures range from -40°C to 150°C. This component is suitable for applications in power conversion and industrial motor control. The packaging is supplied in trays.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 26 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | Module |
| Mounting Type | Chassis Mount |
| Speed | Standard Recovery >500ns, > 200mA (Io) |
| Technology | Standard |
| Diode Configuration | 1 Pair Series Connection |
| Current - Average Rectified (Io) (per Diode) | 200A |
| Supplier Device Package | - |
| Operating Temperature - Junction | -40°C ~ 150°C |
| Voltage - DC Reverse (Vr) (Max) | 800 V |
| Voltage - Forward (Vf) (Max) @ If | 1.3 V @ 620 A |
| Current - Reverse Leakage @ Vr | 50 mA @ 800 V |
