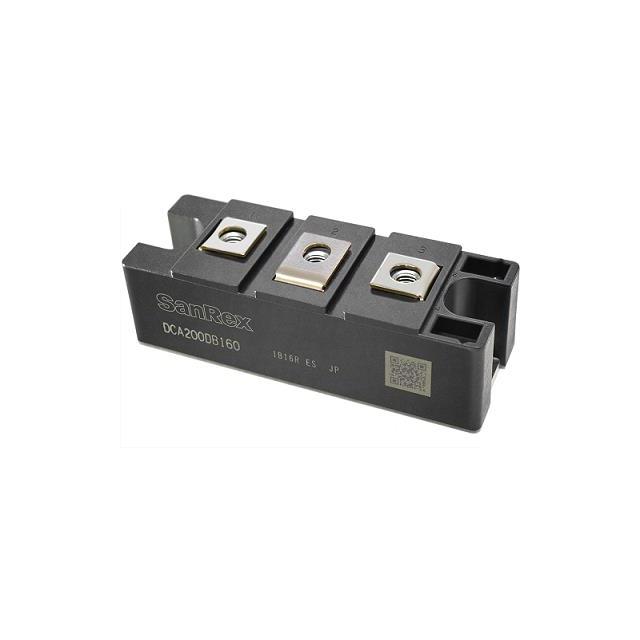

DCA200DB160
DIODE MODULE GP 1600V 200AManufacturer: SanRex Corporation
Categories: Diode Arrays
Quality Control: Learn More
The SanRex Corporation DCA200DB160 is a high-power diode module featuring a single pair of diodes connected in series. This robust component is designed for demanding applications requiring a maximum DC reverse voltage (Vr) of 1600V and an average rectified forward current (Io) of 200A per diode. The module exhibits a typical forward voltage (Vf) of 1.3V at a substantial 620A. With a standard recovery speed exceeding 500ns, it is suitable for power conversion and control circuits. The chassis mount package ensures efficient thermal management, critical for operation within its -40°C to 150°C junction temperature range. This diode module finds application in industries such as industrial motor drives, power supplies, and renewable energy systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 26 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | Module |
| Mounting Type | Chassis Mount |
| Speed | Standard Recovery >500ns, > 200mA (Io) |
| Technology | Standard |
| Diode Configuration | 1 Pair Series Connection |
| Current - Average Rectified (Io) (per Diode) | 200A |
| Supplier Device Package | - |
| Operating Temperature - Junction | -40°C ~ 150°C |
| Voltage - DC Reverse (Vr) (Max) | 1600 V |
| Voltage - Forward (Vf) (Max) @ If | 1.3 V @ 620 A |
| Current - Reverse Leakage @ Vr | 50 mA @ 1600 V |
