DBA200WA40
DIODE MODULE GP 400V 100A SOT227Manufacturer: SanRex Corporation
Categories: Diode Arrays
Quality Control: Learn More
SanRex Corporation DBA200WA40 is a diode module featuring two independent diodes within a SOT-227-4, miniBLOC package. This chassis mount component is rated for 400V reverse voltage and offers an average rectified current of 100A per diode. With a forward voltage drop of 1.2V at 100A, it utilizes standard diode technology and exhibits a reverse leakage of 4mA at 400V. The DBA200WA40 has a reverse recovery time of 110ns, classifying it as a fast recovery diode. Operating temperature ranges from -40°C to 150°C. This module is suitable for applications in power supplies, motor control, and industrial automation.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: 26 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | SOT-227-4, miniBLOC |
| Mounting Type | Chassis Mount |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 110 ns |
| Technology | Standard |
| Diode Configuration | 2 Independent |
| Current - Average Rectified (Io) (per Diode) | 100A |
| Supplier Device Package | SOT-227 |
| Operating Temperature - Junction | -40°C ~ 150°C |
| Voltage - DC Reverse (Vr) (Max) | 400 V |
| Voltage - Forward (Vf) (Max) @ If | 1.2 V @ 100 A |
| Current - Reverse Leakage @ Vr | 4 mA @ 400 V |
Request a Quote
Clients Also Buy

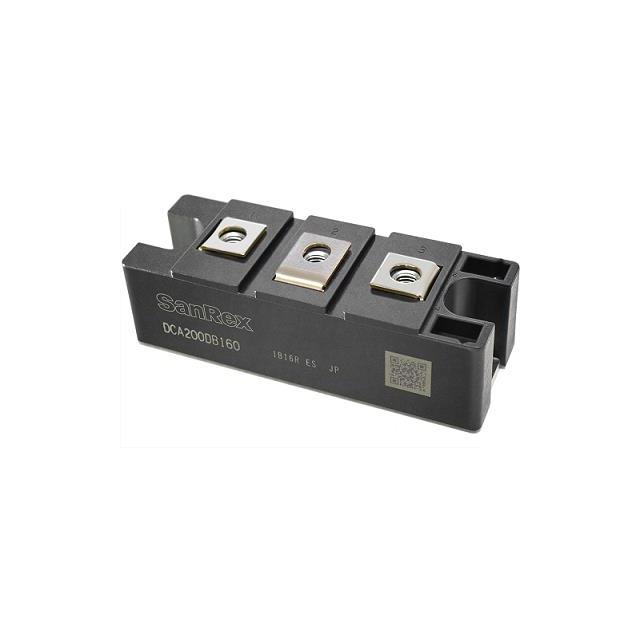

DCA240DB160
