DAF160AA40
DIODE MODULE GP 400V 160AManufacturer: SanRex Corporation
Categories: Diode Arrays
Quality Control: Learn More

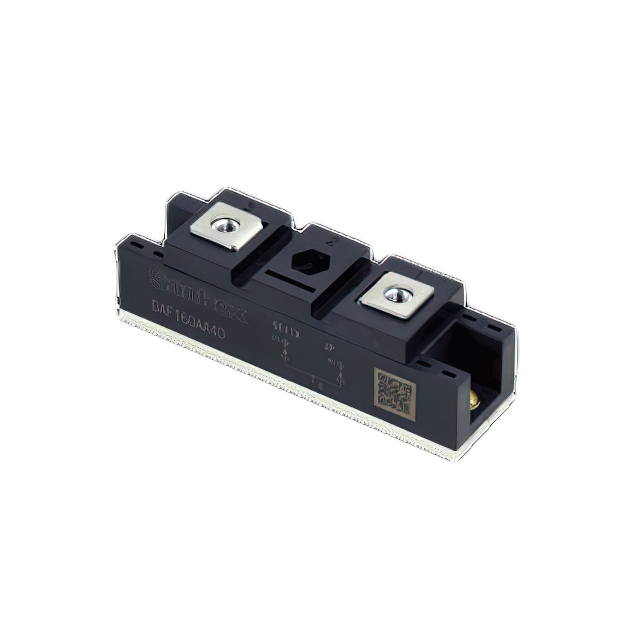

SanRex Corporation DAF160AA40 is a diode module featuring a single pair of common anode diodes. This component offers a maximum DC reverse voltage of 400V and an average rectified current of 160A per diode. The forward voltage drop is specified at 1.3V maximum at 500A. Designed for chassis mounting, it operates efficiently across a junction temperature range of -40°C to 150°C. The diode configuration is a 1 Pair Common Anode, utilizing standard recovery speed characteristics (greater than 500ns, > 200mA Io). This module is suitable for applications in power electronics, industrial automation, and renewable energy systems. It is supplied in tray packaging.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: 26 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | Module |
| Mounting Type | Chassis Mount |
| Speed | Standard Recovery >500ns, > 200mA (Io) |
| Technology | Standard |
| Diode Configuration | 1 Pair Common Anode |
| Current - Average Rectified (Io) (per Diode) | 160A |
| Supplier Device Package | - |
| Operating Temperature - Junction | -40°C ~ 150°C |
| Voltage - DC Reverse (Vr) (Max) | 400 V |
| Voltage - Forward (Vf) (Max) @ If | 1.3 V @ 500 A |
| Current - Reverse Leakage @ Vr | 30 mA @ 400 V |
