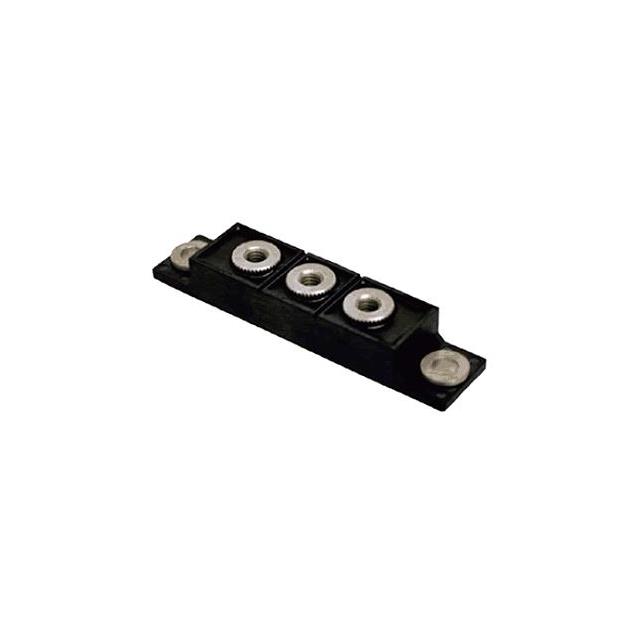

BKA400AA10
DIODE MODULE SCHOTT 100V 400AManufacturer: SanRex Corporation
Categories: Diode Arrays
Quality Control: Learn More
SanRex Corporation BKA400AA10 is a Schottky diode module featuring a common cathode configuration with a maximum reverse voltage of 100V. This high-current device is rated for an average rectified current of 400A per diode, with a forward voltage drop of 930mV at 400A. The module exhibits a reverse leakage current of 140mA at 100V and a fast recovery time of less than 500ns. Designed for chassis mounting, it operates across a junction temperature range of -40°C to 150°C. This component is suitable for power conditioning and high-power rectification applications within industrial and automotive sectors.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: 26 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | Module |
| Mounting Type | Chassis Mount |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Technology | Schottky |
| Diode Configuration | 1 Pair Common Cathode |
| Current - Average Rectified (Io) (per Diode) | 400A |
| Supplier Device Package | - |
| Operating Temperature - Junction | -40°C ~ 150°C |
| Voltage - DC Reverse (Vr) (Max) | 100 V |
| Voltage - Forward (Vf) (Max) @ If | 930 mV @ 400 A |
| Current - Reverse Leakage @ Vr | 140 mA @ 100 V |
