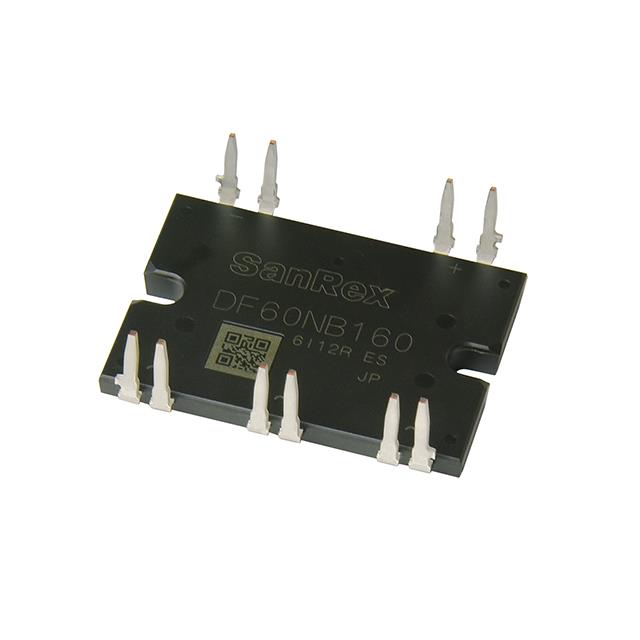

DF60NB160
DIODE MODULE 1600V 60AManufacturer: SanRex Corporation
Categories: Bridge Rectifiers
Quality Control: Learn More
SanRex Corporation DF60NB160 is a three-phase bridge rectifier module designed for high-voltage, high-current applications. This through-hole component features a 1600V peak reverse voltage rating and an average rectified current capability of 60A. The standard technology utilized ensures robust performance with a maximum forward voltage of 1.3V at 60A. Operating within a temperature range of -40°C to 150°C (TJ), this 5-DIP module exhibits a reverse leakage current of 8mA at its maximum reverse voltage. Applications for this component include industrial power supplies, motor drives, and electric vehicle charging infrastructure. The DF60NB160 is supplied in tube packaging.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: 26 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 5-PowerDIP Module |
| Mounting Type | Through Hole |
| Diode Type | Three Phase |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Technology | Standard |
| Supplier Device Package | 5-DIP |
| Voltage - Peak Reverse (Max) | 1.6 kV |
| Current - Average Rectified (Io) | 60 A |
| Voltage - Forward (Vf) (Max) @ If | 1.3 V @ 60 A |
| Current - Reverse Leakage @ Vr | 8 mA @ 1600 V |
