GKI10526
MOSFET N-CH 100V 4A 8DFNManufacturer: Sanken Electric USA Inc.
Categories: Single FETs, MOSFETs
Quality Control: Learn More

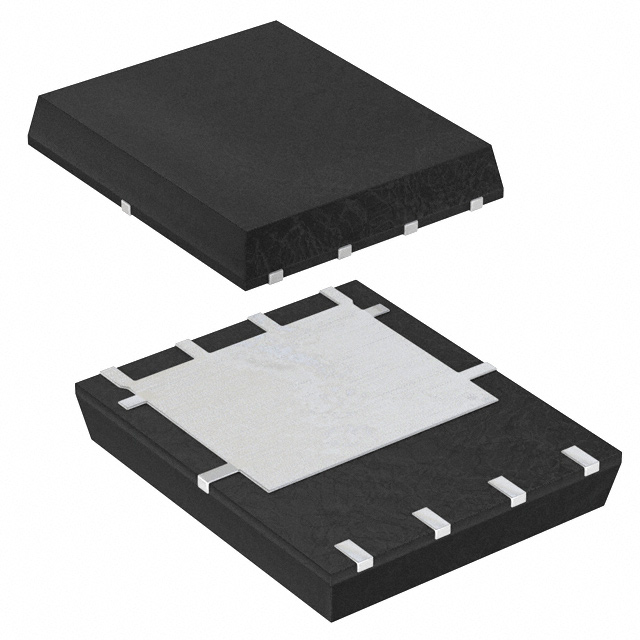

N-Channel 100 V 4A (Ta) 3.1W (Ta), 46W (Tc) Surface Mount 8-DFN (5x6)
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-PowerTDFN |
| Mounting Type | Surface Mount |
| Operating Temperature | 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 4A (Ta) |
| Rds On (Max) @ Id, Vgs | 47.7mOhm @ 9.3A, 10V |
| FET Feature | - |
| Power Dissipation (Max) | 3.1W (Ta), 46W (Tc) |
| Vgs(th) (Max) @ Id | 2.5V @ 350µA |
| Supplier Device Package | 8-DFN (5x6) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Vgs (Max) | ±20V |
| Drain to Source Voltage (Vdss) | 100 V |
| Gate Charge (Qg) (Max) @ Vgs | 23 nC @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds | 1530 pF @ 25 V |
