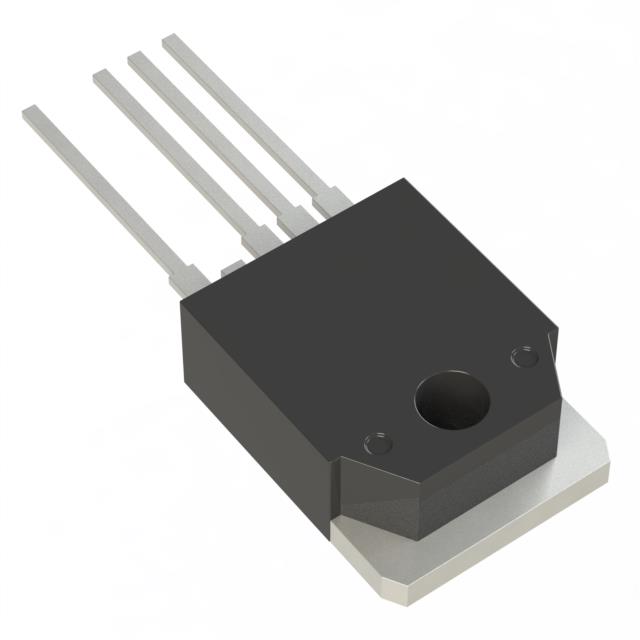

STD03N
TRANS NPN DARL 160V 15A TO3P-5LManufacturer: Sanken Electric USA Inc.
Categories: Single Bipolar Transistors
Quality Control: Learn More
Bipolar (BJT) Transistor NPN - Darlington 160 V 15 A 160 W Through Hole TO-3P-5L
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | TO-3P-5 |
| Mounting Type | Through Hole |
| Transistor Type | NPN - Darlington |
| Operating Temperature | 150°C (TJ) |
| Vce Saturation (Max) @ Ib, Ic | 2V @ 10mA, 10A |
| Current - Collector Cutoff (Max) | 100µA (ICBO) |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 5000 @ 10A, 4V |
| Frequency - Transition | - |
| Supplier Device Package | TO-3P-5L |
| Current - Collector (Ic) (Max) | 15 A |
| Voltage - Collector Emitter Breakdown (Max) | 160 V |
| Power - Max | 160 W |
