2SC3858
TRANS NPN 200V 17A MT-200Manufacturer: Sanken Electric USA Inc.
Categories: Single Bipolar Transistors
Quality Control: Learn More

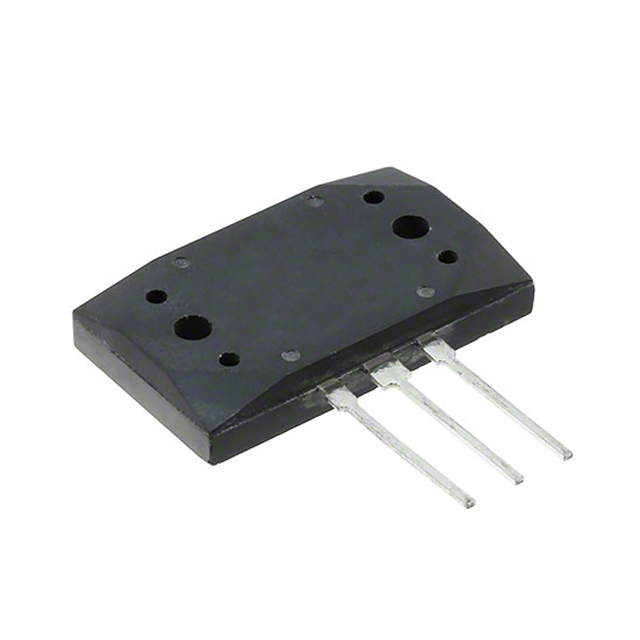

Sanken Electric USA Inc. NPN Bipolar Junction Transistor, part number 2SC3858. This through-hole device, housed in an MT-200 (3-ESIP) package, offers a collector-emitter breakdown voltage of 200V and a continuous collector current capability of 17A. With a maximum power dissipation of 200W and an operating junction temperature of 150°C, it features a minimum DC current gain (hFE) of 50 at 8A and 4V. The transition frequency is 20MHz. This component is suitable for high-power applications in industrial power supplies, audio amplifiers, and switching power supplies.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 3-ESIP |
| Mounting Type | Through Hole |
| Transistor Type | NPN |
| Operating Temperature | 150°C (TJ) |
| Vce Saturation (Max) @ Ib, Ic | 2.5V @ 1A, 10A |
| Current - Collector Cutoff (Max) | 100µA (ICBO) |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 50 @ 8A, 4V |
| Frequency - Transition | 20MHz |
| Supplier Device Package | MT-200 |
| Current - Collector (Ic) (Max) | 17 A |
| Voltage - Collector Emitter Breakdown (Max) | 200 V |
| Power - Max | 200 W |
