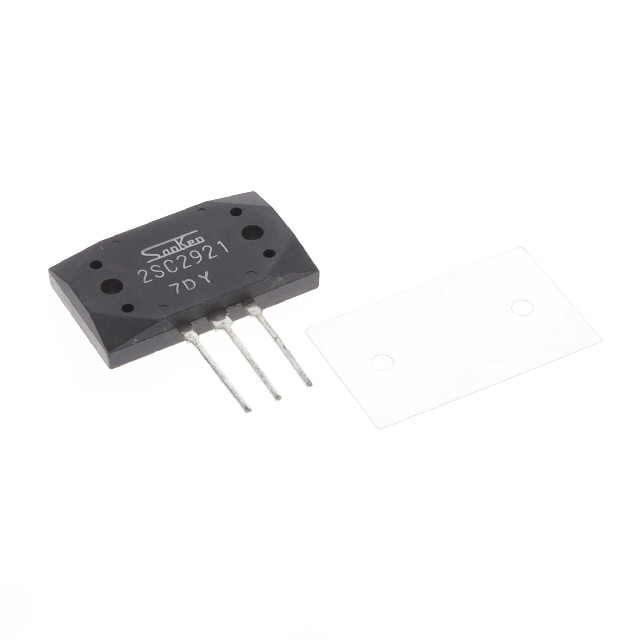

2SC2921
TRANS NPN 160V 15A MT-200Manufacturer: Sanken Electric USA Inc.
Categories: Single Bipolar Transistors
Quality Control: Learn More
Bipolar (BJT) Transistor NPN 160 V 15 A 60MHz 150 W Through Hole MT-200
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 3-ESIP |
| Mounting Type | Through Hole |
| Transistor Type | NPN |
| Operating Temperature | 150°C (TJ) |
| Vce Saturation (Max) @ Ib, Ic | 2V @ 500mA, 5A |
| Current - Collector Cutoff (Max) | 100µA (ICBO) |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 50 @ 5A, 4V |
| Frequency - Transition | 60MHz |
| Supplier Device Package | MT-200 |
| Current - Collector (Ic) (Max) | 15 A |
| Voltage - Collector Emitter Breakdown (Max) | 160 V |
| Power - Max | 150 W |
