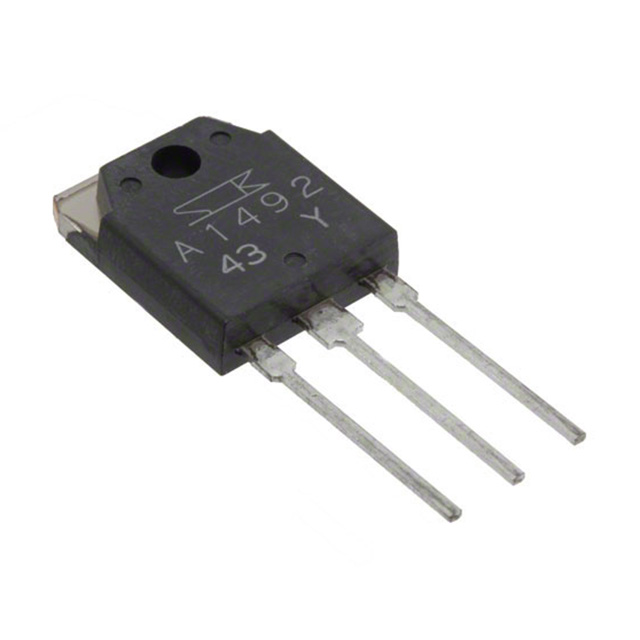

2SA1492
TRANS PNP 180V 15A TO3PManufacturer: Sanken Electric USA Inc.
Categories: Single Bipolar Transistors
Quality Control: Learn More
Bipolar (BJT) Transistor PNP 180 V 15 A 20MHz 130 W Through Hole TO-3P
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 30 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | TO-3P-3, SC-65-3 |
| Mounting Type | Through Hole |
| Transistor Type | PNP |
| Operating Temperature | 150°C (TJ) |
| Vce Saturation (Max) @ Ib, Ic | 2V @ 500mA, 5A |
| Current - Collector Cutoff (Max) | 100µA (ICBO) |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 50 @ 3A, 4V |
| Frequency - Transition | 20MHz |
| Supplier Device Package | TO-3P |
| Current - Collector (Ic) (Max) | 15 A |
| Voltage - Collector Emitter Breakdown (Max) | 180 V |
| Power - Max | 130 W |
